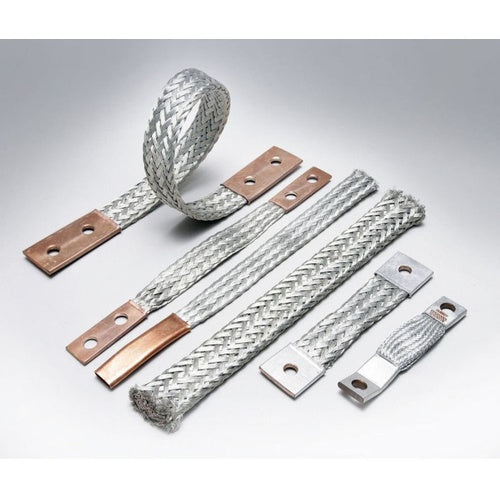

Burndy BG12N 1Str Flexible Copper Braid

Overview

Burndy BG12N 1Str Flexible Copper Braid

Product Specifications

• UPC: 78181000532
• Ferrule Material: Seamless Copper
• Hole Diameter: 0.56 Inch
• Hole Spacing: 1.75 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Number of Braid 1; with 2 Hole NEMA Drilled Ferrule
• Catalog Number: BG12N
• Model: B
• Current Rating: 415 Ampere (Indoor), 495 Ampere (Outdoor)
• Length: 12 Inch
• Width: 1.5 Inch
• Thickness: 0.25 Inch
• Ferrule Length: 3 Inch
• Braid Material: Tinned Copper
• Catalog Description: FLEXIBLE COPPER BRAID, 12 IN L,APPROXIMATE AMPERE RATING INDOOR:415,OUTDOOR:495.
• Category: Ground Rods & Grounding Systems
• Full Technical Description: 12 Inch; 1.5 Inch; 3 Inch Ferrule Length; UL, CSA Approval; 0.25 Inch Thickness; 415 Ampere (Indoor), 495 Ampere (Outdoor) Current Rating; 0.56 Inch Hole Diameter; Seamless Copper Ferrule Material; 1.75 Inch Hole Spacing; Tinned Copper Braid Material; Braid Brand; RoHS Compatible; Number of Braid 1; With 2 Hole NEMA Drilled Ferrule; B Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Grounding Flexible Braid Jumper
• Unspsc: 39121408
• UPC 12 Digit: 781810005323
• SKU Name: bur bg12n

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
