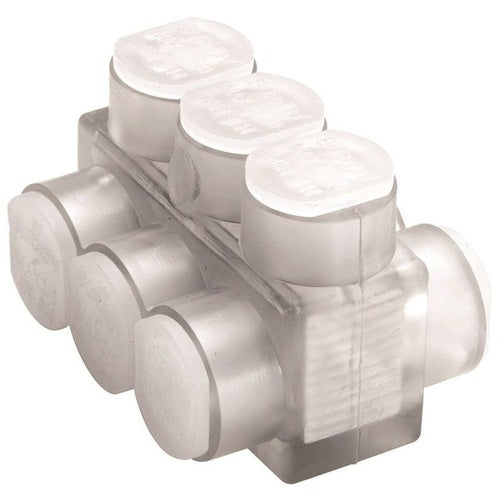

Burndy BIBD2/08 2/0-14 Two Sided Uni-Tap

Overview

Burndy BIBD2/08 2/0-14 Two Sided Uni-Tap

Product Specifications

• Catalog Description: CLEAR PLASTISOL COVERED DOUBLE SIDED ENTRY, #14-2/0 AWG, AL/CU RATED, 8 PORTS, OXIDE INHIBITOR IS PRE-INSTALLED.
• Category: Large Terminals & Connectors
• Full Technical Description: 8 AWG (Aluminum), 14 AWG Stranded (Copper) min. Conductor Size; 2/0 AWG (Aluminum), 2/0 AWG Stranded (Copper) Max. Conductor Size; Aluminum/Copper Conductor Material; UL 486B, CSA Approval; 600 V Voltage Rating; Clear Plastisol Covered AL6061-T6 Aluminum Body Material; 8 Port(S); 2 Side Entry Cable Entry; UNITAP[TM] Brand; RoHS Compatible; Temperature Rating 90 Deg C; Size 5.55 Inch L X 1.56 Inch W X 1.38 Inch H; Hex Key Size 3/16 Inch; Number of Screw 8; BIBD Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Mechanical Multiple Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810223987
• SKU Name: bur bibd2/08

Resources

• Product Brochure
• Product Spec Sheet
• Technical Line Drawing
