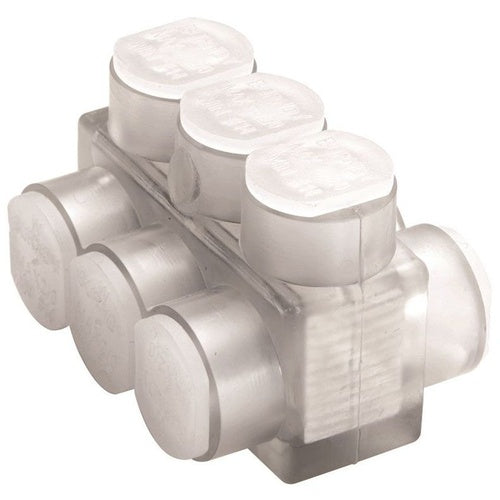

Burndy BIBD-250-5 250-10, 2-Side,Uni-Tap

Overview

Burndy BIBD-250-5 250-10, 2-Side,Uni-Tap

Product Specifications

• UPC: 78181013342
• Maximum Conductor Size: 250 KCMIL (Aluminum), 250 KCMIL Stranded (Copper)
• Body Material: Clear Plastisol Covered AL6061-T6 Aluminum
• Approval: UL 486B, CSA
• Additional Information: RoHS Compatible; Temperature Rating 90 Deg C; Size 4.84 Inch L x 2.64 Inch W x 2.13 Inch H; Hex Key Size 5/16 Inch; Number Of Screw 5
• Catalog Number: BIBD2505
• Brand Name: UNITAP[TM]
• Model: BIBD
• Voltage Rating: 600 V
• Number Of Ports: 5
• Cable Entry: 2 Side Entry
• Conductor Material: Aluminum/Copper
• Minimum Conductor Size: 8 AWG (Aluminum), 10 AWG Stranded (Copper)
• Catalog Description: CLEAR PLASTISOL COVERED DOUBLE SIDED ENTRY, 5 PORTS, #10 AWG-250 KCMIL, 5 PORTS. AL/CU RATED. OXIDE INHIBITOR IS PRE-INSTALLED.
• Category: Large Terminals & Connectors
• Full Technical Description: 8 AWG (Aluminum), 10 AWG Stranded (Copper) min. Conductor Size; 250 kcmil (Aluminum), 250 kcmil Stranded (Copper) Max. Conductor Size; Aluminum/Copper Conductor Material; UL 486B, CSA Approval; 600 V Voltage Rating; Clear Plastisol Covered AL6061-T6 Aluminum Body Material; 5 Port(S); 2 Side Entry Cable Entry; UNITAP[TM] Brand; RoHS Compatible; Temperature Rating 90 Deg C; Size 4.84 Inch L X 2.64 Inch W X 2.13 Inch H; Hex Key Size 5/16 Inch; Number of Screw 5; BIBD Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Multiple Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810133422
• SKU Name: bur bibd2505

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
