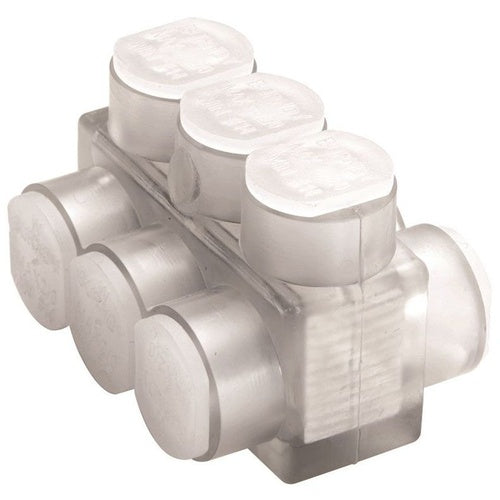

Burndy BIBD45 Multiple Wire Terminal

Name: Burndy BIBD45 Multiple Wire Terminal
Brand: Industrial Fittings Now
Price: 76.40 USD

Quantity

Industrial Fittings Now

Product Description

Catalog Description: CLEAR PLASTISOL COVERED DOUBLE SIDED ENTRY, 5 PORTS, #14-4 AWG. AL/CU RATED. OXIDE INHIBITOR IS PRE-INSTALLED.
Full Technical Description: 8 AWG (Aluminum), 14 AWG Stranded (Copper) min. Conductor Size; 4 AWG (Aluminum), 4 AWG Stranded (Copper) Max. Conductor Size; Aluminum/Copper Conductor Material; UL 486B, CSA Approval; 600 V Voltage Rating; Clear Plastisol Covered AL6061-T6 Aluminum Body Material; 5 Port(S); 2 Side Entry Cable Entry; UNITAP[TM] Brand; RoHS Compatible; Temperature Rating 90 Deg C; Size 2.39 Inch L X 1.50 Inch W X 1.25 Inch H; Hex Key Size 1/8 Inch; Number of Screw 5; BIBD Model
Manufacturer: BURNDY PRODUCTS
Sub Category: Mechanical Multiple Cable Tap
UPC 12 Digit: 781810225684
SKU Name: bur bibd45
