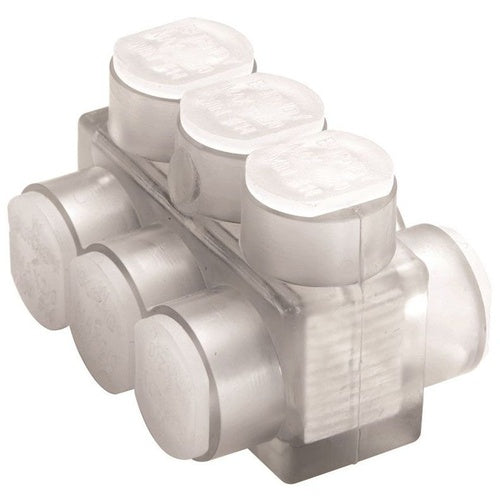

Burndy BIBD4-6 14-4 Two Sided Uni-Tap,2.83"

Overview

Burndy BIBD4-6 14-4 Two Sided Uni-Tap,2.83"

Product Specifications

• UPC: 78181022387
• Maximum Conductor Size: 4 AWG (Aluminum), 4 AWG Stranded (Copper)
• Body Material: Clear Plastisol Covered AL6061-T6 Aluminum
• Approval: UL 486B, CSA
• Additional Information: RoHS Compatible; Temperature Rating 90 Deg C; Size 2.83 Inch L x 1.50 Inch W x 1.25 Inch H; Hex Key Size 1/8 Inch; Number Of Screw 6
• Catalog Number: BIBD46
• Brand Name: UNITAP[TM]
• Model: BIBD
• Voltage Rating: 600 V
• Number Of Ports: 6
• Cable Entry: 2 Side Entry
• Conductor Material: Aluminum/Copper
• Minimum Conductor Size: 8 AWG (Aluminum), 14 AWG Stranded (Copper)
• Catalog Description: CLEAR PLASTISOL COVERED DOUBLE SIDED ENTRY, 6 PORTS, #14-4 AWG. AL/CU RATED. OXIDE INHIBITOR IS PRE-INSTALLED.
• Category: Large Terminals & Connectors
• Full Technical Description: 8 AWG (Aluminum), 14 AWG Stranded (Copper) min. Conductor Size; 4 AWG (Aluminum), 4 AWG Stranded (Copper) Max. Conductor Size; Aluminum/Copper Conductor Material; UL 486B, CSA Approval; 600 V Voltage Rating; Clear Plastisol Covered AL6061-T6 Aluminum Body Material; 6 Port(S); 2 Side Entry Cable Entry; UNITAP[TM] Brand; RoHS Compatible; Temperature Rating 90 Deg C; Size 2.83 Inch L X 1.50 Inch W X 1.25 Inch H; Hex Key Size 1/8 Inch; Number of Screw 6; BIBD Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Multiple Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810223871
• SKU Name: bur bibd46

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
