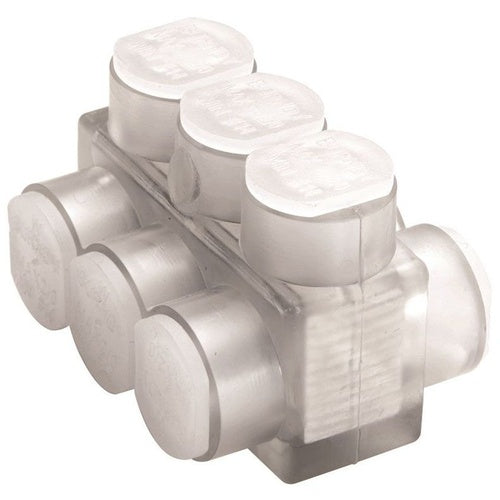

Burndy BIBD600-14 Multiple Wire Terminal

Overview

Burndy BIBD600-14 Multiple Wire Terminal

Product Specifications

• Catalog Description: PLASTISOL COVERED MULTIPLE TAP CONNECTOR WITH DOUBLE-SIDED ENTRY. WIRE RANGE: #4 AWG - 600 KCMIL AL/CU
• Full Technical Description: 4 AWG (Aluminum), 4 AWG Stranded (Copper) min. Conductor Size; 600 kcmil (Aluminum), 600 kcmil Stranded (Copper) Max. Conductor Size; Aluminum/Copper Conductor Material; UL 486B, CSA Approval; 600 V Voltage Rating; Clear Plastisol Covered AL6061-T6 Aluminum Body Material; 14 Port(S); 2 Side Entry Cable Entry; UNITAP[TM] Brand; RoHS Compatible; Temperature Rating 90 Deg C; Size 18.09 Inch L X 3 Inch W X 2.75 Inch H; Hex Key Size 3/8 Inch; Number of Screw 14; BIBD Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Mechanical Multiple Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810232842
• SKU Name: bur bibd60014

Resources

• Technical Drawing
• Manufacturer Spec Sheet
