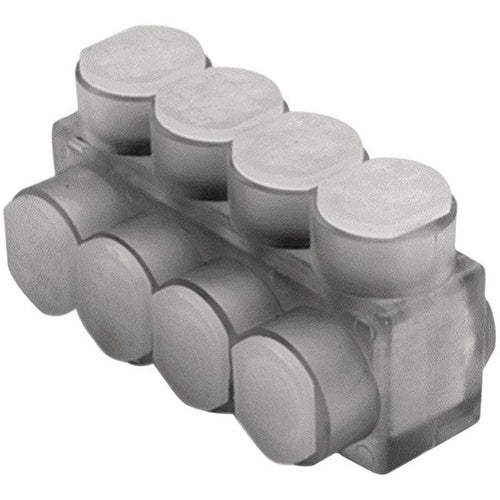

Burndy BIBD-600-4MT Insulated 4-Port 4-600

Overview

Burndy BIBD-600-4MT Insulated 4-Port 4-600

Product Specifications

• UPC: 78181025340
• Maximum Conductor Size: 600 KCMIL (Aluminum), 600 KCMIL Stranded (Copper)
• Body Material: Aluminum Body, Clear Plastisol Insulated
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Size 7.84 Inch L x 3 Inch W x 2.88 Inch H; Hex Key Size 3/8 Inch; Number Of Screw 6
• Catalog Number: BIBD6004MT
• Brand Name: UNITAP[TM]
• Model: BIBD-MT
• Voltage Rating: 600 V
• Number Of Ports: 4
• Cable Entry: 2 Side Entry
• Conductor Material: Aluminum/Copper
• Minimum Conductor Size: 4 AWG (Aluminum), 4 AWG Stranded (Copper)
• Catalog Description: CLEAR PLASTISOL COVERED DOUBLE SIDED ENTRY, MOUNTABLE, 4 PORTS, #4 AWG-600 KCMIL. AL/CU RATED. OXIDE INHIBITOR IS PRE-INSTALLED.
• Category: Large Terminals & Connectors
• Full Technical Description: 4 AWG (Aluminum), 4 AWG Stranded (Copper) min. Conductor Size; 600 kcmil (Aluminum), 600 kcmil Stranded (Copper) Max. Conductor Size; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 V Voltage Rating; Aluminum Body, Clear Plastisol Insulated Body Material; 4 Port(S); 2 Side Entry Cable Entry; UNITAP[TM] Brand; RoHS Compatible; Size 7.84 Inch L X 3 Inch W X 2.88 Inch H; Hex Key Size 3/8 Inch; Number of Screw 6; BIBD-MT Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Multiple Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810253403
• SKU Name: bur bibd6004mt
