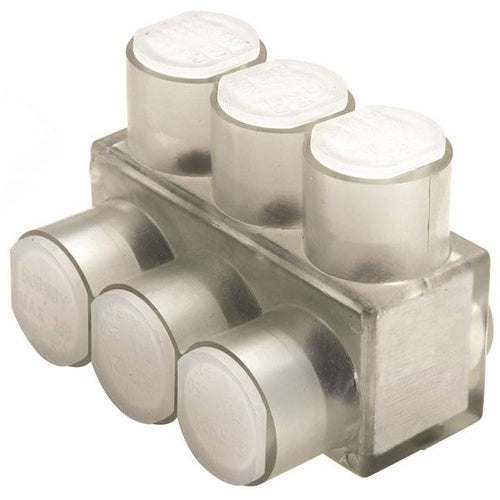

Burndy BIBS2/0-3 90 Degrees 14-2/0 3 Port One Sided Uni-Tap,2.19 In

Overview

Burndy BIBS2/0-3 90 Degrees 14-2/0 3 Port One Sided Uni-Tap,2.19 In

Product Specifications

• UPC: 78181022388
• Maximum Conductor Size: 2/0 AWG Stranded
• Body Material: Clear Plastisol Covered 6061-T6 Aluminum
• Approval: UL 486B, CSA
• Additional Information: RoHS Compliant; Type Insulated; Hex Key Size 3/16 Inch; Number of Screw 3; Temperature Rating 90 Deg C
• Catalog Number: BIBS2/03
• Brand Name: UNITAP[TM]
• Model: BIBS
• Voltage Rating: 600 Volt
• Number Of Ports: 3
• Cable Entry: 1-Side Entry
• Conductor Material: Copper/Aluminum
• Minimum Conductor Size: 14 AWG Stranded
• Catalog Description: CLEAR PLASTISOL COVERED, SINGLE SIDE ENTRY, 3 PORTS, #14-2/0 AWG. AL/CU RATED. OXIDE INHIBITOR IS PRE-INSTALLED.
• Category: Large Terminals & Connectors
• Full Technical Description: 14 AWG Stranded min. Conductor Size; 2/0 AWG Stranded Max. Conductor Size; Copper/Aluminum Conductor Material; UL 486B, CSA Approval; 600 Volt Voltage Rating; Clear Plastisol Covered 6061-T6 Aluminum Body Material; 3 Port(S); 1-Side Entry Cable Entry; Unitap Brand; RoHS Compliant; Type Insulated; Hex Key Size 3/16 Inch; Number of Screw 3; Temperature Rating 90 Deg C; BIBS Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Multiple Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810223888
• SKU Name: bur bibs2/03

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
