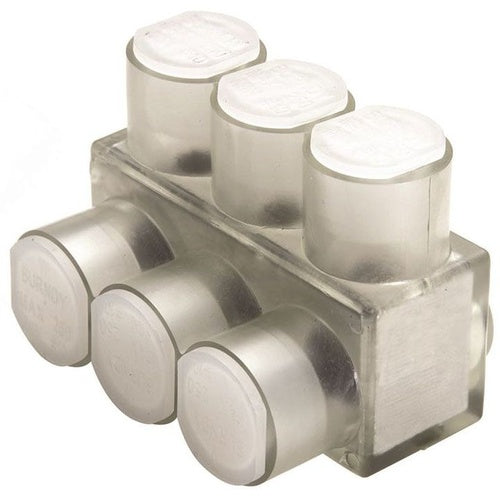

Burndy BIBS2/06 2/0-14 One Sided Uni-Tap,4.20

Overview

Burndy BIBS2/06 2/0-14 One Sided Uni-Tap,4.20

Product Specifications

• Catalog Description: CLEAR PLASTISOL COVERED, SINGLE SIDE ENTRY, 6 PORTS, #14-2/0 AWG. AL/CU RATED. OXIDE INHIBITOR IS PRE-INSTALLED.
• Full Technical Description: 8 AWG (Aluminum), 14 AWG Stranded (Copper) min. Conductor Size; 2/0 AWG (Aluminum), 2/0 AWG Stranded (Copper) Max. Conductor Size; Aluminum/Copper Conductor Material; UL 486B, CSA Approval; 600 V Voltage Rating; Clear Plastisol Covered AL6061-T6 Aluminum Body Material; 6 Port(S); 1 Side Entry Cable Entry; UNITAP[TM] Brand; RoHS Compatible; Temperature Rating 90 Deg C; Size 4.20 Inch L X 1.31 Inch W X 1.38 Inch H; Hex Key Size 3/16 Inch; Number of Screw 6; BIBS Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Mechanical Multiple Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810223918
• SKU Name: bur bibs2/06
