Burndy BIBS2508 Multiple Wire Terminal

Overview

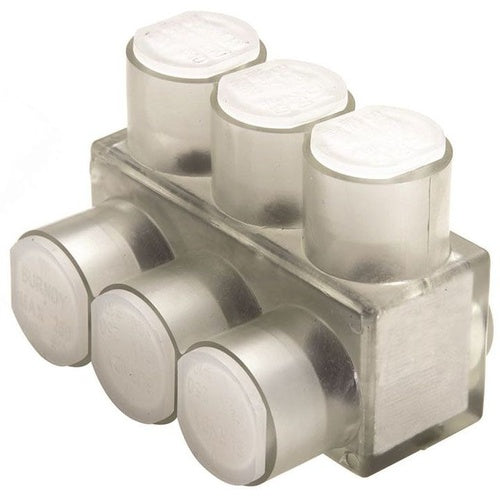

Burndy BIBS2508 Multiple Wire Terminal

Product Specifications

• Catalog Description: CLEAR PLASTISOL COVERED, SINGLE SIDE ENTRY, 8 PORTS, #10 AWG - 250 KCMIL. AL/CU RATED. OXIDE INHIBITOR IS PRE-INSTALLED.
• Full Technical Description: 8 AWG (Aluminum), 10 AWG Stranded (Copper) min. Conductor Size; 250 kcmil (Aluminum), 250 kcmil Stranded (Copper) Max. Conductor Size; Aluminum/Copper Conductor Material; UL 486B, CSA Approval; 600 V Voltage Rating; Clear Plastisol Covered AL6061-T6 Aluminum Body Material; 8 Port(S); 1 Side Entry Cable Entry; UNITAP[TM] Brand; RoHS Compatible; Temperature Rating 90 Deg C; Size 7.66 Inch L X 2.07 Inch W X 2.13 Inch H; Hex Key Size 5/16 Inch; Number of Screw 8; BIBS Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Mechanical Multiple Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810131787
• SKU Name: bur bibs2508

Resources

• Manufacturer Spec Sheet
