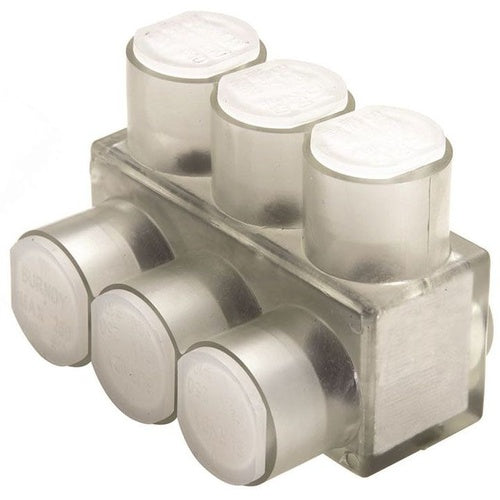

Burndy BIBS-350-3 350-10,One-Side, Uni-Tap

Overview

Burndy BIBS-350-3 350-10,One-Side, Uni-Tap

Product Specifications

• UPC: 78181013177
• Maximum Conductor Size: 350 KCMIL (Aluminum), 350 KCMIL Stranded (Copper)
• Body Material: Clear Plastisol Covered AL6061-T6 Aluminum
• Approval: UL 486B, CSA
• Additional Information: RoHS Compliant; Temperature Rating 90 Deg C; Size 3.13 Inch L x 2.32 Inch W x 2.5 Inch H; Hex Key Size 5/16 Inch; Number of Screws 10
• Catalog Number: BIBS3503
• Brand Name: UNITAP[TM]
• Model: Type BIBS
• Voltage Rating: 600 V
• Number Of Ports: 3
• Cable Entry: 1-Side Entry
• Conductor Material: Aluminum/Copper
• Minimum Conductor Size: 8 AWG (Aluminum), 10 AWG Stranded (Copper)
• Catalog Description: CLEAR PLASTISOL COVERED, SINGLE SIDE ENTRY, 3 PORTS, #10 AWG-350 KCMIL. AL/CU RATED. OXIDE INHIBITOR IS PRE-INSTALLED.
• Category: Large Terminals & Connectors
• Full Technical Description: 8 AWG (Aluminum), 10 AWG Stranded (Copper) min. Conductor Size; 350 kcmil (Aluminum), 350 kcmil Stranded (Copper) Max. Conductor Size; Aluminum/Copper Conductor Material; UL 486B, CSA Approval; 600 V Voltage Rating; Clear Plastisol Covered AL6061-T6 Aluminum Body Material; 3 Port(S); 1-Side Entry Cable Entry; Unitap Brand; RoHS Compliant; Temperature Rating 90 Deg C; Size 3.13 Inch L X 2.32 Inch W X 2.5 Inch H; Hex Key Size 5/16 Inch; Number of Screws 10; TYPE BIBS Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Multiple Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810131770
• SKU Name: bur bibs3503
