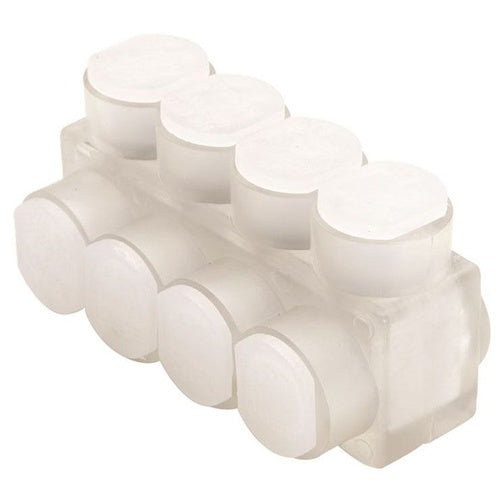

Burndy BIBS-350-4 350-10, 1-Side,Uni-Tap,4.04 In

Overview

Burndy BIBS-350-4 350-10, 1-Side,Uni-Tap,4.04 In

Product Specifications

• UPC: 78181013349
• Maximum Conductor Size: 350 KCMIL Stranded
• Body Material: Clear Plastisol Covered 6061-T6 Aluminum
• Approval: UL 486B, CSA
• Additional Information: RoHS Compliant; Type Insulated; Hex Key Size 5/16 Inch; Number of Screw 10; Temperature Rating 90 Deg C
• Catalog Number: BIBS3504
• Brand Name: UNITAP[TM]
• Model: BIBS
• Voltage Rating: 600 Volt
• Number Of Ports: 4
• Cable Entry: 1-Side Entry
• Conductor Material: Copper/Aluminum
• Minimum Conductor Size: 10 AWG Stranded
• Catalog Description: ALUMINUM MULTIPLE TAP CONNECTOR, CLEAR INSULATED, 4 PORT, 1 SIDED ENTRY, 10 AWG-350 KCMIL, AL/CU RATED.
• Category: Large Terminals & Connectors
• Full Technical Description: 10 AWG Stranded min. Conductor Size; 350 kcmil Stranded Max. Conductor Size; Copper/Aluminum Conductor Material; UL 486B, CSA Approval; 600 Volt Voltage Rating; Clear Plastisol Covered 6061-T6 Aluminum Body Material; 4 Port(S); 1-Side Entry Cable Entry; UNITAP[TM] Brand; RoHS Compliant; Type Insulated; Hex Key Size 5/16 Inch; Number of Screw 10; Temperature Rating 90 Deg C; BIBS Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Multiple Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810133491
• SKU Name: bur bibs3504
