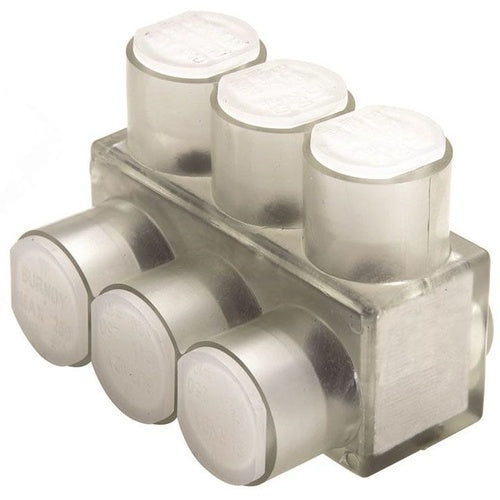

Burndy BIBS600-3 600-4 One Sided Uni-Tap,4"

Overview

Burndy BIBS600-3 600-4 One Sided Uni-Tap,4"

Product Specifications

• UPC: 78181022410
• Maximum Conductor Size: 600 KCMIL Stranded
• Body Material: Clear Plastisol Covered 6061-T6 Aluminum
• Approval: UL 486B, CSA
• Additional Information: RoHS Compliant; Type Insulated; Hex Key Size 3/8 Inch; Number of Screw 3; Temperature Rating 90 Deg C
• Catalog Number: BIBS6003
• Brand Name: UNITAP[TM]
• Model: BIBS
• Voltage Rating: 600 Volt
• Number Of Ports: 3
• Cable Entry: 1-Side Entry
• Conductor Material: Copper/Aluminum
• Minimum Conductor Size: 4 AWG Stranded
• Catalog Description: CLEAR PLASTISOL COVERED, SINGLE SIDE ENTRY, 3 PORTS, #4 AWG-600 KCMIL. AL/CU RATED. OXIDE INHIBITOR IS PRE-INSTALLED.
• Category: Large Terminals & Connectors
• Full Technical Description: 4 AWG Stranded min. Conductor Size; 600 kcmil Stranded Max. Conductor Size; Copper/Aluminum Conductor Material; UL 486B, CSA Approval; 600 Volt Voltage Rating; Clear Plastisol Covered 6061-T6 Aluminum Body Material; 3 Port(S); 1-Side Entry Cable Entry; UNITAP[TM] Brand; RoHS Compliant; Type Insulated; Hex Key Size 3/8 Inch; Number of Screw 3; Temperature Rating 90 Deg C; BIBS Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Multiple Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810224106
• SKU Name: bur bibs6003

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
