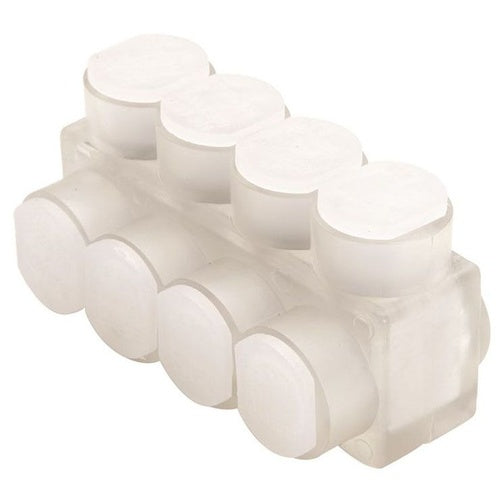

Burndy BIBS600-4 600-4 One Sided Uni-Tap,5.28 In

Overview

Burndy BIBS600-4 600-4 One Sided Uni-Tap,5.28 In

Product Specifications

• UPC: 78181022411
• Maximum Conductor Size: 600 KCMIL (Aluminum), 600 KCMIL Stranded (Copper)
• Body Material: Clear Plastisol Covered AL6061-T6 Aluminum
• Approval: UL 486B, CSA
• Additional Information: RoHS Compatible; Temperature Rating 90 Deg C; Size 5.28 Inch L x 2.38 Inch W x 2.75 Inch H; Hex Key Size 3/8 Inch; Number Of Screw 4
• Catalog Number: BIBS6004
• Brand Name: UNITAP[TM]
• Model: BIBS
• Voltage Rating: 600 V
• Number Of Ports: 4
• Cable Entry: 1 Side Entry
• Conductor Material: Aluminum/Copper
• Minimum Conductor Size: 4 AWG (Aluminum), 4 AWG Stranded (Copper)
• Catalog Description: CLEAR PLASTISOL COVERED, SINGLE SIDE ENTRY, 4 PORTS, #4 AWG-600 KCMIL. AL/CU RATED. OXIDE INHIBITOR IS PRE-INSTALLED.
• Category: Large Terminals & Connectors
• Full Technical Description: 4 AWG (Aluminum), 4 AWG Stranded (Copper) min. Conductor Size; 600 kcmil (Aluminum), 600 kcmil Stranded (Copper) Max. Conductor Size; Aluminum/Copper Conductor Material; UL 486B, CSA Approval; 600 V Voltage Rating; Clear Plastisol Covered AL6061-T6 Aluminum Body Material; 4 Port(S); 1 Side Entry Cable Entry; UNITAP[TM] Brand; RoHS Compatible; Temperature Rating 90 Deg C; Size 5.28 Inch L X 2.38 Inch W X 2.75 Inch H; Hex Key Size 3/8 Inch; Number of Screw 4; BIBS Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Multiple Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810224113
• SKU Name: bur bibs6004
