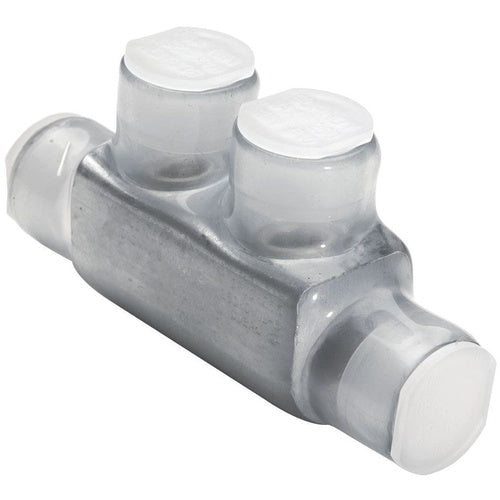

Burndy BISR2 2Awg In-Line Splice

Overview

Burndy BISR2 2Awg In-Line Splice

Product Specifications

• UPC: 78181022519
• Number Of Screws: 2
• Hex Size: 5/32 Inch
• Size: 2.38 Inch L x 0.75 Inch W x 1.22 Inch H
• Body Material: 6061-T6 Aluminum
• Insulation Type: Clear Plastisol
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Application Indoor; Number of Ports 2; Temperature Rating 90 Deg C
• Catalog Number: BISR2
• Brand Name: UNITAP[TM]
• Model: Type BISR
• Type: In-Line
• Voltage Rating: 600 V
• Minimum Conductor Size: 8 AWG (Aluminum), 14 AWG Stranded (Copper)
• Maximum Conductor Size: 2 AWG (Aluminum), 2 AWG Stranded (Copper)
• Conductor Material: Aluminum/Copper
• Catalog Description: IN-LINE SPLICE REDUCER, CLEAR INSULATION, #14-2 AWG CODE CONDUCTOR, DUAL RATED AL9CU, OXIDE INHIBITOR PRE-INSTALLED
• Category: Small Terminals & Connectors
• Full Technical Description: In-Line Type; 2.38 Inch L X 0.75 Inch W X 1.22 Inch H Size; 8 AWG (Aluminum), 14 AWG Stranded (Copper) min. Conductor Size; 2 AWG (Aluminum), 2 AWG Stranded (Copper) Max. Conductor Size; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 V Voltage Rating; 6061-T6 Aluminum Body Material; Clear Plastisol Insulation Type; 2 Screw(S); 5/32 Inch Hex Size; Unitap Brand; RoHS Compliant; Application Indoor; Number of Ports 2; Temperature Rating 90 Deg C; TYPE BISR Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Cable Splice
• Unspsc: 39121427
• UPC 12 Digit: 781810225196
• SKU Name: bur bisr2

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
