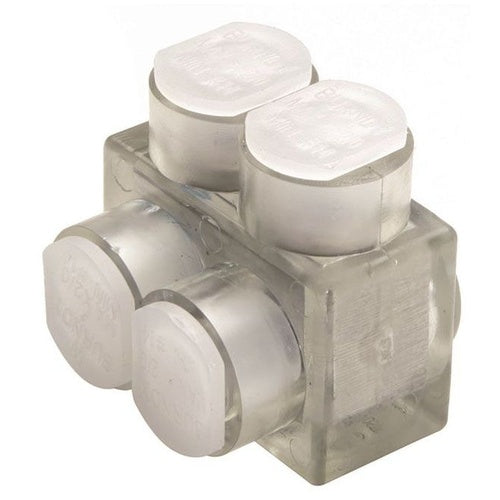

Burndy BIT750 750-2 1-Sided Uni-Tap

Overview

Burndy BIT750 750-2 1-Sided Uni-Tap

Product Specifications

• UPC: 78181023313
• Maximum Conductor Size: 750 KCMIL (Aluminum), 750 KCMIL Stranded (Copper)
• Body Material: Clear Plastisol Coated 6061-T6 Aluminum
• Approval: CSA
• Additional Information: RoHS Compatible; Temperature Rating 90 Deg C; Size 2.87 Inch L x 2.7 Inch W x 3 Inch H; Hex Key Size 3/16 Inch; Number Of Screw 2
• Catalog Number: BIT750
• Brand Name: UNITAP[TM]
• Model: BIT
• Voltage Rating: 600 V
• Number Of Ports: 2
• Cable Entry: 1 Side Entry
• Conductor Material: Aluminum/Copper
• Minimum Conductor Size: 2 AWG (Aluminum), 2 AWG Stranded (Copper)
• Catalog Description: CLEAR PLASTISOL COVERED ALUMINUM MULTIPLE TAP CONNECTOR. 1-SIDE ENTRY, 2-PORT. SUITABLE FOR CODE CONDUCTOR, #2 AWG-750 KCMIL, AL/CU RATED, UL486B LISTED
• Category: Large Terminals & Connectors
• Full Technical Description: 2 AWG (Aluminum), 2 AWG Stranded (Copper) min. Conductor Size; 750 kcmil (Aluminum), 750 kcmil Stranded (Copper) Max. Conductor Size; Aluminum/Copper Conductor Material; CSA Approval; 600 V Voltage Rating; Clear Plastisol Coated 6061-T6 Aluminum Body Material; 2 Port(S); 1 Side Entry Cable Entry; UNITAP[TM] Brand; RoHS Compatible; Temperature Rating 90 Deg C; Size 2.87 Inch L X 2.7 Inch W X 3 Inch H; Hex Key Size 3/16 Inch; Number of Screw 2; BIT Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Multiple Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810233139
• SKU Name: bur bit750

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
