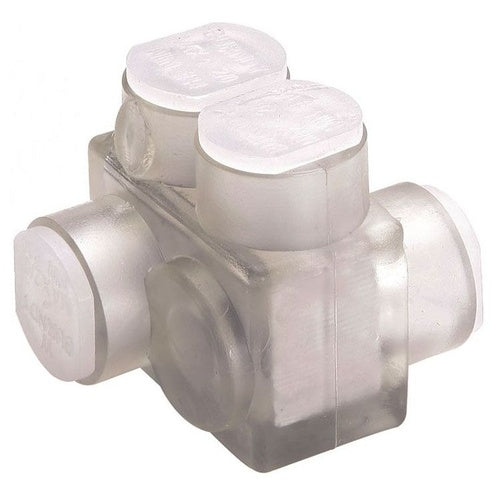

Burndy BITO-2/0 2/0-14, 2 Side, Uni-Tap

Overview

Burndy BITO-2/0 2/0-14, 2 Side, Uni-Tap

Product Specifications

• UPC: 78181013355
• Maximum Conductor Size: 2/0 AWG Stranded
• Body Material: Clear Plastisol Covered 6061-T6 Aluminum
• Approval: UL 486B, CSA
• Additional Information: RoHS Compliant; Type Insulated; Hex Key Size 3/16 Inch; Number of Screw 2; Temperature Rating 90 Deg C
• Catalog Number: BITO2/0
• Brand Name: UNITAP[TM]
• Model: BITO
• Voltage Rating: 600 Volt
• Number Of Ports: 2
• Cable Entry: 2-Side Entry
• Conductor Material: Copper/Aluminum
• Minimum Conductor Size: 14 AWG Stranded
• Catalog Description: CLEAR PLASTISOL COVERED MULTIPLE TAP CONNECTOR, 2-PORT, OPPOSITE SIDE ENTRY. #14-2/0 AWG, AL/CU RATED.
• Category: Large Terminals & Connectors
• Full Technical Description: 14 AWG Stranded min. Conductor Size; 2/0 AWG Stranded Max. Conductor Size; Copper/Aluminum Conductor Material; UL 486B, CSA Approval; 600 Volt Voltage Rating; Clear Plastisol Covered 6061-T6 Aluminum Body Material; 2 Port(S); 2-Side Entry Cable Entry; Unitap Brand; RoHS Compliant; Type Insulated; Hex Key Size 3/16 Inch; Number of Screw 2; Temperature Rating 90 Deg C; BITO Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Multiple Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810133552
• SKU Name: bur bito2/0

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
