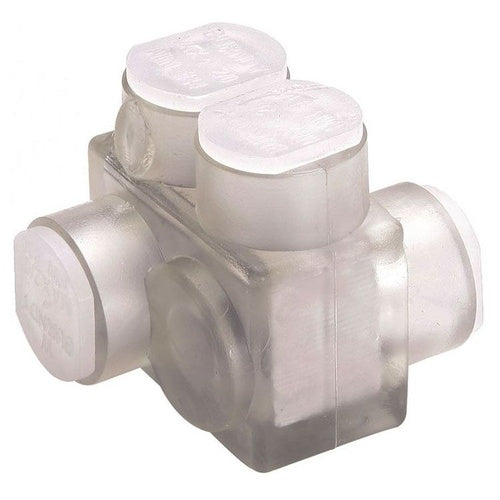

Burndy BITO600 600-4, Offset, Uni-Tap

Overview

Burndy BITO600 600-4, Offset, Uni-Tap

Product Specifications

• UPC: 78181022526
• Maximum Conductor Size: 600 KCMIL (Aluminum), 600 KCMIL Stranded (Copper)
• Body Material: Clear Plastisol Coated 6061-T6 Aluminum
• Approval: UL 486B, CSA
• Additional Information: RoHS Compatible; Temperature Rating 90 Deg C; Size 2.72 Inch L x 3 Inch W x 2.75 Inch H; Hex Key Size 3/8 Inch; Number Of Screw 2
• Catalog Number: BITO600
• Brand Name: UNITAP[TM]
• Model: BITO
• Voltage Rating: 600 V
• Number Of Ports: 2
• Cable Entry: 2 Side Entry
• Conductor Material: Aluminum/Copper
• Minimum Conductor Size: 4 AWG (Aluminum), 4 AWG Stranded (Copper)
• Catalog Description: CLEAR PLASTISOL COVERED MULTIPLE TAP CONNECTOR, 2-PORT, OPPOSITE SIDE ENTRY. #4 AWG-600 KCMIL, AL/CU RATED.
• Category: Large Terminals & Connectors
• Full Technical Description: 4 AWG (Aluminum), 4 AWG Stranded (Copper) min. Conductor Size; 600 kcmil (Aluminum), 600 kcmil Stranded (Copper) Max. Conductor Size; Aluminum/Copper Conductor Material; UL 486B, CSA Approval; 600 V Voltage Rating; Clear Plastisol Coated 6061-T6 Aluminum Body Material; 2 Port(S); 2 Side Entry Cable Entry; UNITAP[TM] Brand; RoHS Compatible; Temperature Rating 90 Deg C; Size 2.72 Inch L X 3 Inch W X 2.75 Inch H; Hex Key Size 3/8 Inch; Number of Screw 2; BITO Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Multiple Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810225264
• SKU Name: bur bito600
