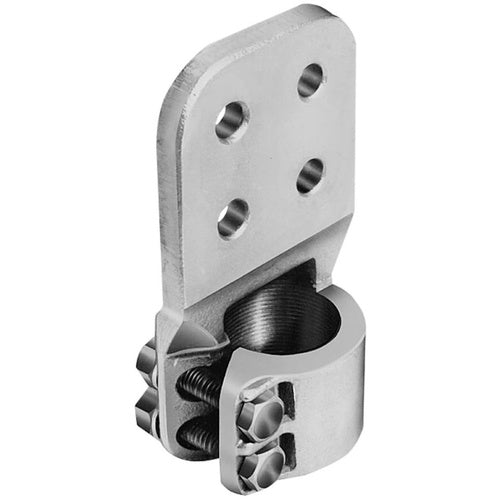

Burndy FD675D8 Stud Connector,4 Hole

Overview

Burndy FD675D8 Stud Connector,4 Hole

Product Specifications

• UPC: 78181000328
• Number Of Pad Holes: 4 NEMA Drilled
• Additional Information: RoHS Compatible; Pad Hole Spacing 1.75 Inch; Voltage Rating 230 kV
• Catalog Number: FD675D8
• Model: FD
• Current Rating: 1450 Ampere
• Material: Copper Alloy
• Stud Size: 1-3/4 Inch-12 TPI
• Length: 7.39 Inch
• Pad Width: 4 Inch
• Pad Thickness: 0.5 Inch
• Catalog Description: CAST CU ALLOY SUBSTAION STUD CONNECTOR, BOLTED, STUD TO PAD, 1-3/4" -12 STUD, 230 KV, SILICON BRONZE H/W, 1450 AMP.
• Category: Channel & Strut Fittings
• Full Technical Description: Copper Alloy Material; 7.39 Inch; 4 Inch Pad Width; 1450 Ampere Current Rating; 1-3/4 Inch-12 TPI Stud Size; 4 NEMA Drilled Pad Hole(S); 0.5 Inch Pad Thickness; RoHS Compatible; Pad Hole Spacing 1.75 Inch; Voltage Rating 230 kV; FD Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Equipment Stud to Flat Bar
• Unspsc: 39121456
• UPC 12 Digit: 781810003282
• SKU Name: bur fd675d8

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
