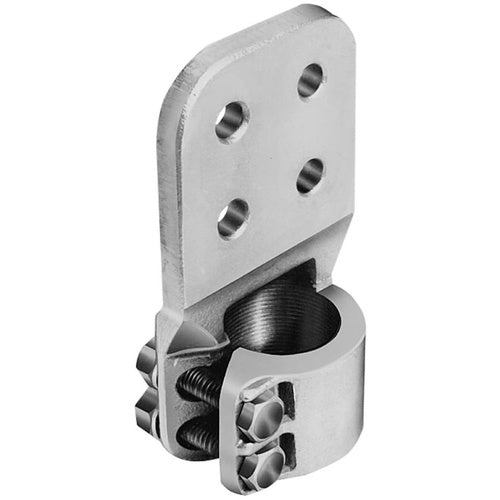

Burndy FD68D8 Stud Connector, 7.42"

Overview

Burndy FD68D8 Stud Connector, 7.42"

Product Specifications

• UPC: 78181000362
• Number Of Pad Holes: 4 NEMA Drilled
• Additional Information: RoHS Compatible; Pad Hole Spacing 1.75 Inch; Voltage Rating 230 kV
• Catalog Number: FD68D8
• Model: FD
• Current Rating: 1450 Ampere
• Material: Copper Alloy
• Stud Size: 2 Inch-12 TPI
• Length: 7.42 Inch
• Pad Width: 4 Inch
• Pad Thickness: 0.5 Inch
• Catalog Description: CAST CU ALLOY STUD CONNECTOR, 1450 AMPS INDOOR NOM, 0.56" HOLE SIZE, 1.75" SPACING, BOLTED, STUD TO FLAT BAR, 2"- 12 STUD DIA, 4 NEMA PAD HOLES.
• Category: Channel & Strut Fittings
• Full Technical Description: Copper Alloy Material; 7.42 Inch; 4 Inch Pad Width; 1450 Ampere Current Rating; 2 Inch-12 TPI Stud Size; 4 NEMA Drilled Pad Hole(S); 0.5 Inch Pad Thickness; RoHS Compatible; Pad Hole Spacing 1.75 Inch; Voltage Rating 230 kV; FD Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Equipment Stud to Flat Bar
• Unspsc: 39121456
• UPC 12 Digit: 781810003626
• SKU Name: bur fd68d8

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
