Burndy GC18A 6-250Mcm Ground ClAMP

Overview

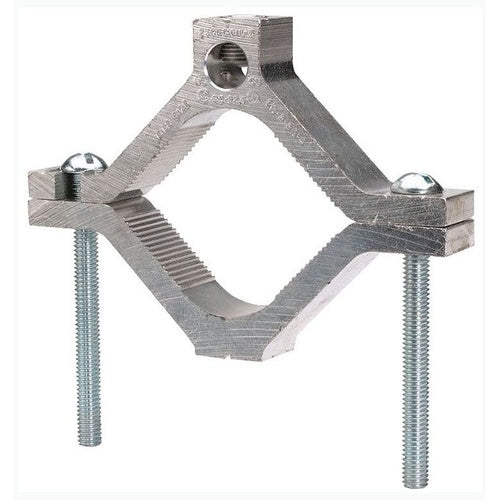

Burndy GC18A 6-250Mcm Ground Clamp

Product Specifications

• UPC: 78181024001
• Used On: Copper/Aluminum Conductor to Copper Water Pipe/Conduit
• Additional Information: RoHS Compliant; Hex Head Size 5/16 Inch
• Catalog Number: GC18A
• Model: GC-A
• Conductor Size: 6 AWG to 4/0 AWG Solid (Copper), 6 AWG to 250 KCMIL Stranded (Copper/Aluminum)
• Ips Size: 1-1/4 to 2 Inch
• Size: 3-3/4 Inch Length x 13/16 Inch Width
• Installation: (2) Hex Head Screw Wire Connector to Pipe
• Material: High-Strength Tin Plated Extruded Aluminum Alloy
• Approval: UL 467, CSA
• Catalog Description: MECHANICAL GROUNDING CONNECTOR, CABLE TO WATER PIPE, 6 AWG - 250 KCMIL, 1-1/4" - 2" PIPE, AL/CU RATED.
• Category: Large Terminals & Connectors
• Full Technical Description: High-Strength Tin Plated Extruded Aluminum Alloy Material; 3-3/4 Inch Length X 13/16 Inch Width Size; Copper/Aluminum Conductor to Copper Water Pipe/Conduit Used on; (2) Hex Head Screw Wire Connector to Pipe Installation; UL 467, CSA Approval; 6 AWG to 4/0 AWG Solid (Copper), 6 AWG to 250 kcmil Stranded (Copper/Aluminum) Conductor Size; 1-1/4 to 2 Inch IPS Size; RoHS Compliant; Hex Head Size 5/16 Inch; GC-A Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810240014
• SKU Name: bur gc18a

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
