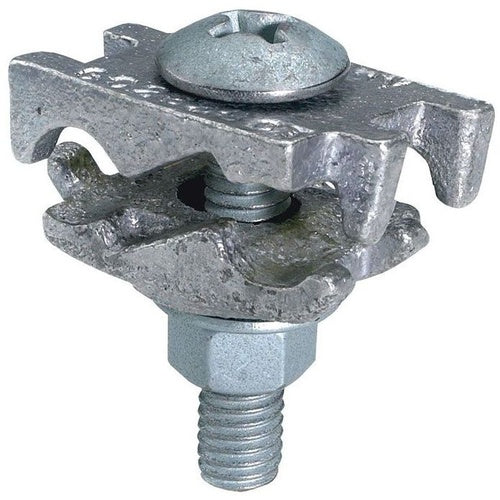

Burndy GC2525CT 6-1/0 1-Bolt Ground Connector

Overview

Burndy GC2525CT 6-1/0 1-Bolt Ground Connector

Product Specifications

• UPC: 78181003550
• Catalog Number: GC2525CT
• Brand Name: Burndy
• Model: GC-CT
• Installation: Bolt-On
• Material: Copper Alloy
• Finish: Tin Plated
• Approval: UL 467, CSA
• Additional Information: RoHS Compliant; Conductor Size 6 to 1/0 AWG Stranded (Aluminum), 6 to 2/0 AWG Solid (Copper), 7 to 1/0 AWG Stranded (Copper); Installation Torque 240 Inch-Pound; Overall Dimension 1.12 Inch Length x 1.45 Inch Width x 1.95 Inch Height
• Catalog Description: CAST COPPER ALLOY CABLE TRAY GROUND CLAMP, #6 SOL. (.162 DIA.) -1/0 STR. (.372 DIA.), 1.12 IN L, 1.45 IN W, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Copper Alloy Material; Tin Plated Finish; Bolt-on Installation; UL 467, CSA Approval; RoHS Compliant; Conductor Size 6 to 1/0 AWG Stranded (Aluminum), 6 to 2/0 AWG Solid (Copper), 7 to 1/0 AWG Stranded (Copper); Installation Torque 240 Inch-Pound; Overall Dimension 1.12 Inch Length X 1.45 Inch Width X 1.95 Inch Height; GC-CT Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Conduit to Tray Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810035504
• SKU Name: bur gc2525ct
