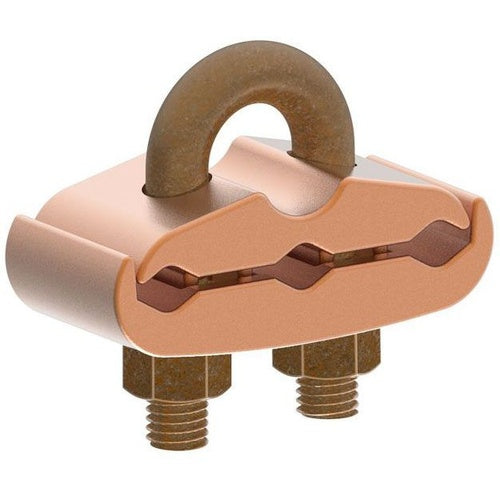

Burndy GK6429 2/0-250 Copper Ground Connector

Overview

Burndy GK6429 2/0-250 Copper Ground Connector

Product Specifications

• UPC: 78181023353
• Material: Cast High Copper Alloy
• Approval: UL 467, CSA
• Used On: (3) Copper Cable to Pipe/Rod, Direct Burial
• Additional Information: RoHS Compliant; Stud/Bolt Size 1/2 Inch; Installation Torque Rating 480 Inch-Pound
• Catalog Number: GK6429
• Brand Name: Burndy
• Model: GK
• Conductor Size: 2/0 to 4/0 AWG Solid (Copper), 1/0 AWG to 250 KCMIL Stranded (Copper)
• Ips Size: 3/8 Inch
• Rod Size: 5/8 to 3/4 Inch
• Size: 3-1/2 Inch Width x 2-7/8 Inch Height
• Installation: U-Bolt to Pipe/Rod
• Catalog Description: MECHANICAL GROUNDING CONNECTOR, 3 CABLES TO ROD OR PIPE, 2/0 AWG (SOL) -250 KCMIL, 3/8" PIPE, 5/8"-3/4" ROD.
• Category: Large Terminals & Connectors
• Full Technical Description: Cast High Copper Alloy Material; 3-1/2 Inch Width X 2-7/8 Inch Height Size; (3) Copper Cable to Pipe/Rod, Direct Burial Used on; U-Bolt to Pipe/Rod Installation; UL 467, CSA Approval; 2/0 to 4/0 AWG Solid (Copper), 1/0 AWG to 250 kcmil Stranded (Copper) Conductor Size; 5/8 to 3/4 Inch Rod Size; 3/8 Inch IPS Size; RoHS Compliant; Stud/Bolt Size 1/2 Inch; Installation Torque Rating 480 Inch-Pound; GK Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810233535
• SKU Name: bur gk6429

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
