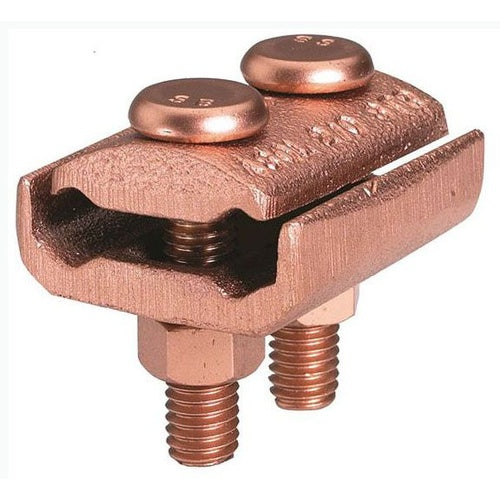

Burndy GL2929 2/0Sol-250 2 Copper Ground Connector

Overview

Burndy GL2929 2/0Sol-250 2 Copper Ground Connector

Product Specifications

• UPC: 78181026002
• Used On: (2) Parallel Cable to Bar, Direct Burial
• Additional Information: RoHS Compatible; Width 2.25 Inch; Installation Torque 480 Lb-Inch
• Catalog Number: GL2929
• Model: GL
• Conductor Size: 2/0 AWG Solid to 250 KCMIL
• Bolt Size: 1/2 Inch
• Bar Thickness: 1/4 Inch
• Height: 2-1/4 Inch
• Material: Cast Copper Alloy Body, Durium Bolt/Nut/Lockwasher
• Approval: UL 467
• Catalog Description: MECHANICAL GROUNDING CONNECTOR, 2 CABLES TO 1/4" THICK BAR, 2/0 AWG (SOL) -250 KCMIL, 1/2" STUD.
• Category: Large Terminals & Connectors
• Full Technical Description: Cast Copper Alloy Body, Durium Bolt/Nut/Lockwasher Material; 2-1/4 Inch; (2) Parallel Cable to Bar, Direct Burial Used on; UL 467 Approval; 2/0 AWG Solid to 250 kcmil Conductor Size; 1/2 Inch Bolt Size; 1/4 Inch Bar Thickness; RoHS Compatible; Width 2.25 Inch; Installation Torque 480 lb-Inch; GL Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Bar To Flat Surface Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810260029
• SKU Name: bur gl2929

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
