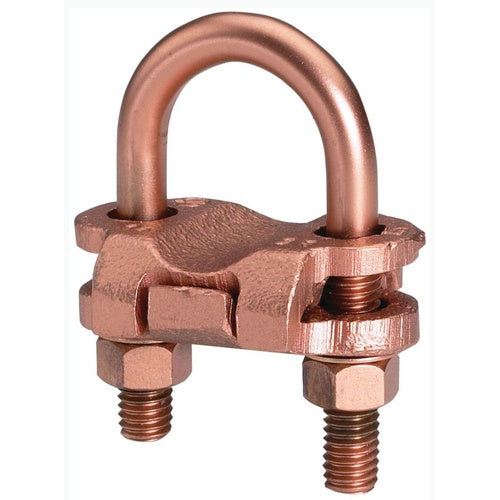

Burndy GP1426 4-2/0 Copper Ground Connector

Overview

Burndy GP1426 4-2/0 Copper Ground Connector

Product Specifications

• UPC: 78181026058
• Approval: UL 467, CSA
• Used On: (2) Parallel Copper Cable Perpendicular to Column/Pipe/Rod, Direct Burial
• Additional Information: RoHS Compatible; Stud/Bolt Size 3/8 Inch; Installation Torque 240 Lb-Inch
• Catalog Number: GP1426
• Model: GP
• Conductor Size: 4 to 3/0 AWG Solid (Copper), 5 to 2/0 AWG Stranded (Copper)
• Ips Size: 1/2 to 3/4 Inch
• Rod Size: 7/8 to 1 Inch
• Size: 2-3/8 Inch W x 3 Inch H
• Installation: U-Bolt to Pipe/Rod
• Material: Cast High Copper Alloy Body, Durium U-Bolt, Nut, Lockwasher
• Catalog Description: MECHANICAL GROUNDING CONNECTOR, 2 CABLES TO ROD OR PIPE, 4 AWG (SOL.) - 2/0 AWG (STR.), 1/2" - 3/4" PIPE, 7/8" - 1" ROD, 3/8" STUD.
• Category: Large Terminals & Connectors
• Full Technical Description: Cast High Copper Alloy Body, Durium U-Bolt, Nut, Lockwasher Material; 2-3/8 Inch W X 3 Inch H Size; (2) Parallel Copper Cable Perpendicular to Column/Pipe/Rod, Direct Burial Used on; U-Bolt to Pipe/Rod Installation; UL 467, CSA Approval; 4 to 3/0 AWG Solid (Copper), 5 to 2/0 AWG Stranded (Copper) Conductor Size; 7/8 to 1 Inch Rod Size; 1/2 to 3/4 Inch IPS Size; RoHS Compatible; Stud/Bolt Size 3/8 Inch; Installation Torque 240 lb-Inch; GP Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810260586
• SKU Name: bur gp1426
