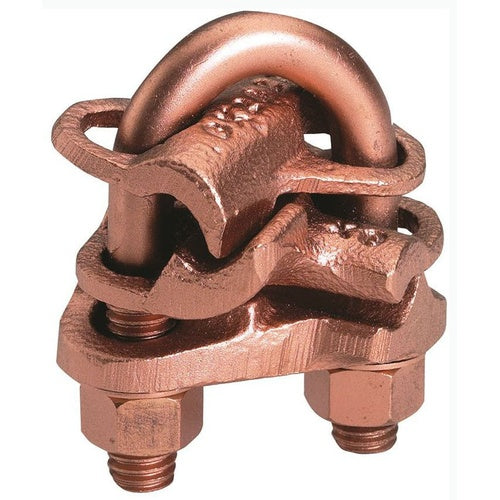

Burndy GX2929 2/0-250 Copper Ground Connector

Overview

Burndy GX2929 2/0-250 Copper Ground Connector

Product Specifications

• UPC: 78181026069
• Used On: Copper Cable to Rod, Direct Burial
• Additional Information: RoHS Compatible; Stud/Bolt Size 3/8 Inch; Installation Torque 240 Lb-Inch
• Catalog Number: GX2929
• Model: GX
• Conductor Size: 2/0 to 4/0 AWG Solid, 1/0 AWG to 250 KCMIL Stranded (Copper, Run), 2/0 to 4/0 AWG Solid, 1/0 AWG to 250 KCMIL Stranded (Copper, Tap)
• Rod Size: 1/2 Inch
• Size: 1-7/8 Inch L x 1-7/8 Inch W x 2-3/4 Inch H
• Installation: U-Bolt to Rod
• Material: Cast High Copper Alloy Body, Durium U-Bolt, Nut, Lockwasher
• Approval: UL 467
• Catalog Description: MECHANICAL GROUNDING CONNECTOR, CABLE CROSS CONNECTION, 2/0 AWG (SOL.) - 250 KCMIL ( RUN), 2/0 AWG (SOL.) - 250 KCMIL ( TAP), 3/8" STUD.
• Category: Large Terminals & Connectors
• Full Technical Description: Cast High Copper Alloy Body, Durium U-Bolt, Nut, Lockwasher Material; 1-7/8 Inch L X 1-7/8 Inch W X 2-3/4 Inch H Size; Copper Cable to Rod, Direct Burial Used on; U-Bolt to Rod Installation; UL 467 Approval; 2/0 to 4/0 AWG Solid, 1/0 AWG to 250 kcmil Stranded (Copper, Run), 2/0 to 4/0 AWG Solid, 1/0 AWG to 250 kcmil Stranded (Copper, Tap) Conductor Size; 1/2 Inch Rod Size; RoHS Compatible; Stud/Bolt Size 3/8 Inch; Installation Torque 240 lb-Inch; GX Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 781810260692
• SKU Name: bur gx2929

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
