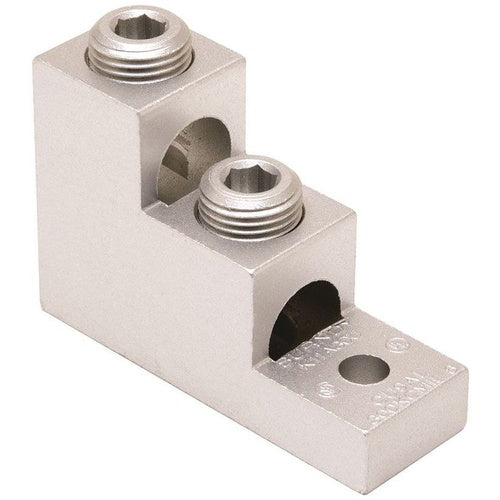

Burndy K11A30U Two:6 Str-300 Dual Rated

Overview

Burndy K11A30U Two:6 Str-300 Dual Rated

Product Specifications

• UPC: 78181037026
• Number Of Pad Holes: 1
• Pad Size: 0.94 Inch Length x 1 Inch Width x 0.5 Inch Thickness
• Stud Size: 5/16 Inch
• Overall Length: 3 Inch
• Approval: UL 468A/B, CSA
• Additional Information: RoHS Compliant; Overall Height 2.03 Inch; Temperature Rating 90 Deg C; Installation Torque 275 Inch-Pound; Number of Screw 2
• Catalog Number: K11A30U
• Model: K11A-U
• Type: Universal, Dual Rated
• Number Of Conductors: 2
• Minimum Conductor Size: 6 AWG Stranded
• Maximum Conductor Size: 300 KCMIL Stranded
• Conductor Material: Copper/Aluminum
• Material: Electro Tin Plated High Strength Extruded Aluminum Alloy
• Catalog Description: ALUMINUM UNIVERSAL TERMINAL, 1 HOLE, TWO: 6 AWG (STR)-300 KCMIL, 5/16" STUD, 2 SCREWS, AL/CU RATED, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Universal, Dual Rated Type; Electro Tin Plated High Strength Extruded Aluminum Alloy Material; 3 Inch Overall Length; 6 AWG Stranded min. Conductor Size; 300 kcmil Stranded Max. Conductor Size; Copper/Aluminum Conductor Material; UL 468A/B, CSA Approval; 2 Conductor(S); 5/16 Inch Stud Size; 0.94 Inch Length X 1 Inch Width X 0.5 Inch Thickness Pad Size; 1 Pad Hole(S); RoHS Compliant; Overall Height 2.03 Inch; Temperature Rating 90 Deg C; Installation Torque 275 Inch-Pound; Number of Screw 2; K11A-U Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810370261
• SKU Name: bur k11a30u

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
