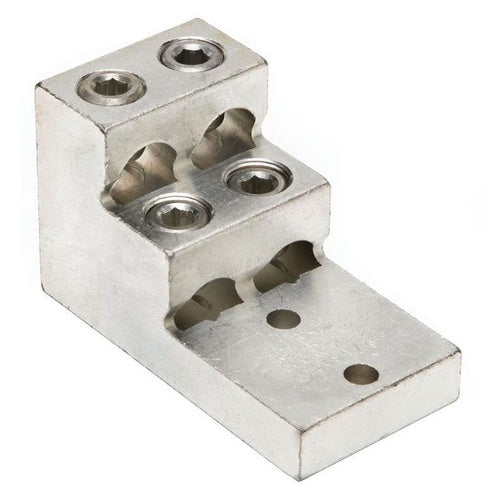

Burndy K22A39U-2 750 Aluminum/Copper 2-Hole Terminal

Overview

Burndy K22A39U-2 750 Aluminum/Copper 2-Hole Terminal

Product Specifications

• UPC: 78181037033
• Pad Size: 2.31 Inch L x 3.06 Inch W x 0.75 Inch Thk
• Stud Size: 3/8 Inch
• Overall Length: 4.91 Inch
• Approval: UL 468-A, UL 468-B, CSA
• Additional Information: Installation Torque 375 Lb-Inch
• Catalog Number: K22A39U2
• Model: K22A-U
• Number Of Conductors: 4
• Minimum Conductor Size: 1/0 AWG Stranded
• Maximum Conductor Size: 750 KCMIL Stranded
• Conductor Material: Aluminum/Copper
• Material: Electro-Tin Plated Aluminum Alloy
• Number Of Pad Holes: 2
• Catalog Description: ALUMINUM UNIVERSAL TERMINAL, 2 HOLE, FOUR: 1/0 AWG (STR)-750 KCMIL, 3/8" STUD, 1.38" STUD HOLE SPACING, 4 SCREWS, AL/CU RATED, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Aluminum Alloy Material; 4.91 Inch Overall Length; 1/0 AWG Stranded min. Conductor Size; 750 kcmil Stranded Max. Conductor Size; Aluminum/Copper Conductor Material; UL 468-A, UL 468-B, CSA Approval; 4 Conductor(S); 3/8 Inch Stud Size; 2.31 Inch L X 3.06 Inch W X 0.75 Inch Thk Pad Size; 2 Pad Hole(S); Installation Torque 375 lb-Inch; K22A-U Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810370339
• SKU Name: bur k22a39u2
