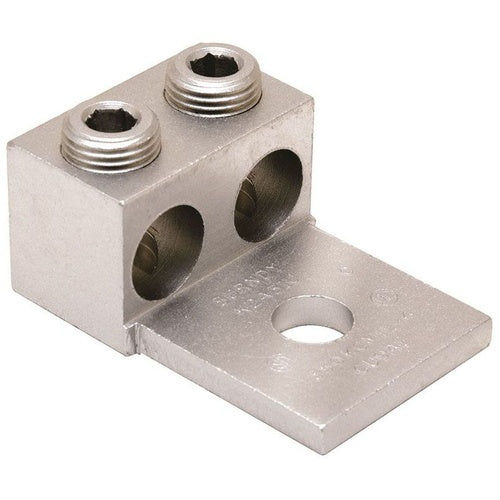

Burndy K2A31U 350 Aluminum/Copper 2-Hole Terminal Lug

Overview

Burndy K2A31U 350 Aluminum/Copper 2-Hole Terminal Lug

Product Specifications

• UPC: 78181060015
• Number Of Pad Holes: 1
• Pad Size: 1.69 Inch Length x 1.94 Inch Width x 0.25 Inch Thickness
• Stud Size: 1/2 Inch
• Overall Length: 2.88 Inch
• Approval: UL 468A/B, CSA
• Additional Information: Overall Height 1.26 Inch; Temperature Rating 90 Deg C; Installation Torque 275 Inch-Pound; Number of Screw 2
• Catalog Number: K2A31U
• Model: K2A-U
• Type: Universal, Dual Rated
• Number Of Conductors: 2
• Minimum Conductor Size: 6 AWG Stranded
• Maximum Conductor Size: 350 KCMIL Stranded
• Conductor Material: Copper/Aluminum
• Material: Electro Tin Plated High Strength Aluminum Alloy
• Catalog Description: ALUMINUM UNIVERSAL TERMINAL, 2 CONDUCTOR, 1 HOLE, 6 AWG (STR)-350 KCMIL, 1/2" STUD, 2 SCREWS, AL/CU RATED, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Universal, Dual Rated Type; Electro Tin Plated High Strength Aluminum Alloy Material; 2.88 Inch Overall Length; 6 AWG Stranded min. Conductor Size; 350 kcmil Stranded Max. Conductor Size; Copper/Aluminum Conductor Material; UL 468A/B, CSA Approval; 2 Conductor(S); 1/2 Inch Stud Size; 1.69 Inch Length X 1.94 Inch Width X 0.25 Inch Thickness Pad Size; 1 Pad Hole(S); Overall Height 1.26 Inch; Temperature Rating 90 Deg C; Installation Torque 275 Inch-Pound; Number of Screw 2; K2A-U Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810600153
• SKU Name: bur k2a31u
