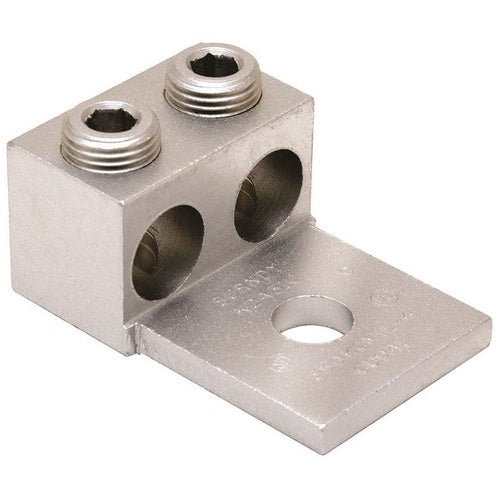

Burndy K2A40U 800 Aluminum/Copper 2-Hole Terminal Lug

Overview

Burndy K2A40U 800 Aluminum/Copper 2-Hole Terminal Lug

Product Specifications

• UPC: 78181060025
• Pad Size: 1.66 Inch L x 3.2 Inch W x 0.5 Inch Thk
• Stud Size: 5/8 Inch
• Overall Length: 3.38 Inch
• Approval: UL 468A/486B, CSA
• Additional Information: RoHS Compliant; Installation Torque 500 Lb-Inch
• Catalog Number: K2A40U
• Model: Type K2A-U
• Number Of Conductors: 2
• Minimum Conductor Size: 300 KCMIL Aluminum, 300 KCMIL Stranded Copper
• Maximum Conductor Size: 800 KCMIL Aluminum, 800 KCMIL Stranded Copper
• Conductor Material: Aluminum/Copper
• Material: Electro Tin Plated Aluminum Alloy
• Number Of Pad Holes: 1
• Catalog Description: ALUMINUM UNIVERSAL TERMINAL, 2 CONDUCTOR, 1 HOLE, 300-800 KCMIL, 5/8" STUD, 2 SCREWS, AL/CU RATED, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Aluminum Alloy Material; 3.38 Inch Overall Length; 300 kcmil Aluminum, 300 kcmil Stranded Copper min. Conductor Size; 800 kcmil Aluminum, 800 kcmil Stranded Copper Max. Conductor Size; Aluminum/Copper Conductor Material; UL 468A/486B, CSA Approval; 2 Conductor(S); 5/8 Inch Stud Size; 1.66 Inch L X 3.2 Inch W X 0.5 Inch Thk Pad Size; 1 Pad Hole(S); RoHS Compliant; Installation Torque 500 lb-Inch; TYPE K2A-U Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810600252
• SKU Name: bur k2a40u

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
