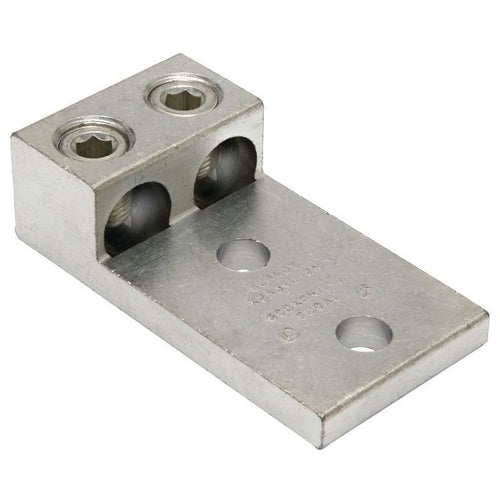

Burndy K2A40U2N 800 Aluminum/Copper 2-Hole Terminal

Overview

Burndy K2A40U2N 800 Aluminum/Copper 2-Hole Terminal

Product Specifications

• UPC: 78181060040
• Number Of Pad Holes: 2 NEMA
• Pad Size: 3.03 Inch Length x 3.19 Inch Width x 0.5 Inch Thickness
• Stud Size: 1/2 Inch
• Overall Length: 4.75 Inch
• Approval: UL 468A/B, CSA
• Additional Information: Overall Height 1.95 Inch; Stud Hole Spacing Size 1.75 Inch; Temperature Rating 90 Deg C; Installation Torque 375 Inch-Pound; Number of Screw 2
• Catalog Number: K2A40U2N
• Model: K2A-U
• Type: Universal, Dual Rated
• Number Of Conductors: 2
• Minimum Conductor Size: 300 KCMIL Stranded
• Maximum Conductor Size: 800 KCMIL Stranded
• Conductor Material: Copper/Aluminum
• Material: Electro Tin Plated High Strength Aluminum Alloy
• Catalog Description: ALUMINUM UNIVERSAL TERMINAL, 2 CONDUCTOR, 2 HOLE, 300-800 KCMIL, 1/2" STUD, 1.75" STUD HOLE SPACING, 2 SCREWS, AL/CU RATED, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Universal, Dual Rated Type; Electro Tin Plated High Strength Aluminum Alloy Material; 4.75 Inch Overall Length; 300 kcmil Stranded min. Conductor Size; 800 kcmil Stranded Max. Conductor Size; Copper/Aluminum Conductor Material; UL 468A/B, CSA Approval; 2 Conductor(S); 1/2 Inch Stud Size; 3.03 Inch Length X 3.19 Inch Width X 0.5 Inch Thickness Pad Size; 2 NEMA Pad Hole(S); Overall Height 1.95 Inch; Stud Hole Spacing Size 1.75 Inch; Temperature Rating 90 Deg C; Installation Torque 375 Inch-Pound; Number of Screw 2; K2A-U Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810600405
• SKU Name: bur k2a40u2n

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
