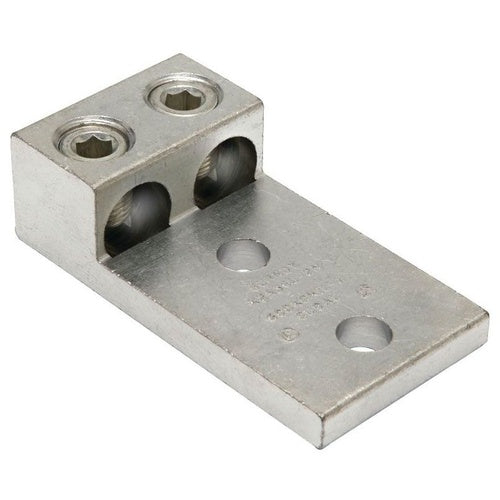

Burndy K2A44U2N 1000 Aluminum/Copper 2-Hole Terminal

Name: Burndy K2A44U2N 1000 Aluminum/Copper 2-Hole Terminal
Brand: Industrial Fittings Now
Price: 113.56 USD

Quantity

Industrial Fittings Now

Product Description

Catalog Description: ALUMINUM UNIVERSAL TERMINAL, 2 CONDUCTOR, 2 HOLE, 500-1000 KCMIL, 1/2" STUD, 1.75" STUD HOLE SPACING, 2 SCREWS, AL/CU RATED, TIN PLATED.
Full Technical Description: Electro-Tin Plated Aluminum Alloy Material; 4.75 Inch Overall Length; 500 kcmil Stranded min. Conductor Size; 1000 kcmil Stranded Max. Conductor Size; Aluminum/Copper Conductor Material; UL 468-A, UL 468-B, CSA Approval; 2 Conductor(S); 1/2 Inch Stud Size; 3.03 Inch L X 3.21 Inch W X 0.5 Inch Thk Pad Size; 2 NEMA Pad Hole(S); Stud Hole Spacing Size 1.75 Inch; Installation Torque 375 lb-Inch; K2A-U Model
Manufacturer: BURNDY PRODUCTS
Sub Category: Mechanical Cable Lug
Unspsc: 39121408
UPC 12 Digit: 781810600450
SKU Name: bur k2a44u2n
