Burndy K3A25U4 Three14-1/0 Str Du

Name: Burndy K3A25U4 Three14-1/0 Str Du
Brand: Industrial Fittings Now
Price: 69.02 USD

Quantity

Industrial Fittings Now

Product Description

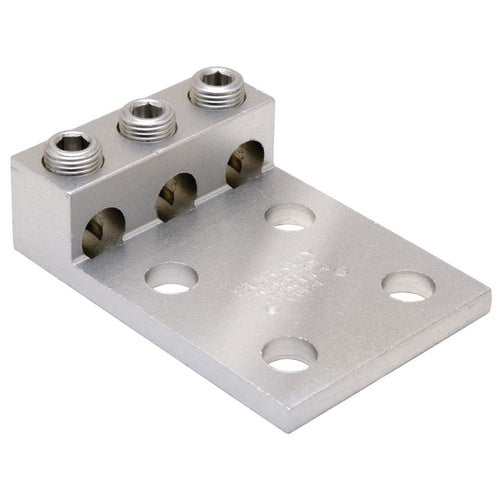

Catalog Description: ALUMINUM UNIVERSAL TERMINAL, 3 CONDUCTOR, 4 HOLE, 14-1/0 AWG (STR), 3/8" STUD, 1" STUD HOLE SPACING, 3 SCREWS, AL/CU RATED, TIN PLATED.
Full Technical Description: Electro Tin Plated Aluminum Alloy Material; 2.91 Inch Overall Length; 14 AWG Stranded min. Conductor Size; 1/0 AWG Stranded Max. Conductor Size; Aluminum/Copper Conductor Material; UL 468A/486B, CSA Approval; 3 Conductor(S); 3/8 Inch Stud Size; 2.09 Inch L X 2.02 Inch W X 0.25 Inch Thk Pad Size; 4 Pad Hole(S); Slot Screw Type; RoHS Compliant; Installation Torque 50 lb-Inch; Stud Hole Spacing Size 1 Inch; TYPE K3A-U Model
Manufacturer: BURNDY PRODUCTS
Sub Category: Mechanical Cable Lug
UPC 12 Digit: 781810370384
SKU Name: bur k3a25u4
