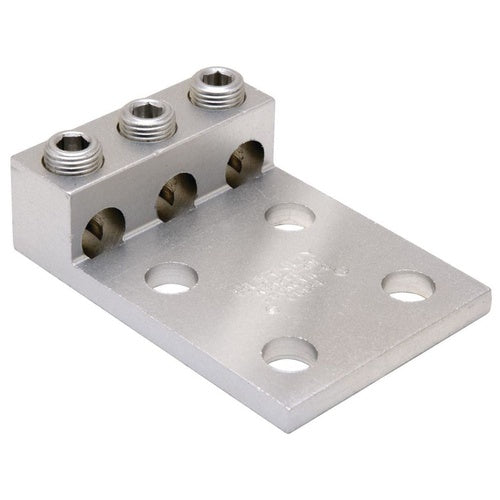

Burndy K3A27U4N 6-3/0 Aluminum/Copper 3H Terminal

Name: Burndy K3A27U4N 6-3/0 Aluminum/Copper 3H Terminal
Brand: Industrial Fittings Now
Price: 92.32 USD

Quantity

Industrial Fittings Now

Product Description

Catalog Description: ALUMINUM UNIVERSAL TERMINAL, 3 CONDUCTOR, 4 HOLE, 6-3/0 AWG (STR), 1/2" STUD, 1.75" STUD HOLE SPACING, 3 SCREWS, AL/CU RATED, TIN PLATED.
Full Technical Description: Electro-Tin Plated Aluminum Alloy Material; 3.88 Inch Overall Length; 6 AWG Stranded min. Conductor Size; 3/0 AWG Stranded Max. Conductor Size; Aluminum/Copper Conductor Material; UL 468-A, UL 468-B, CSA Approval; 3 Conductor(S); 1/2 Inch Stud Size; 3 Inch L X 2.83 Inch W X 0.31 Inch Thk Pad Size; 4 NEMA Pad Hole(S); Stud Hole Spacing Size 1.75 Inch; Installation Torque 275 lb-Inch; K3A-U Model
Manufacturer: BURNDY PRODUCTS
Sub Category: Mechanical Cable Lug
UPC 12 Digit: 781810370414
SKU Name: bur k3a27u4n
