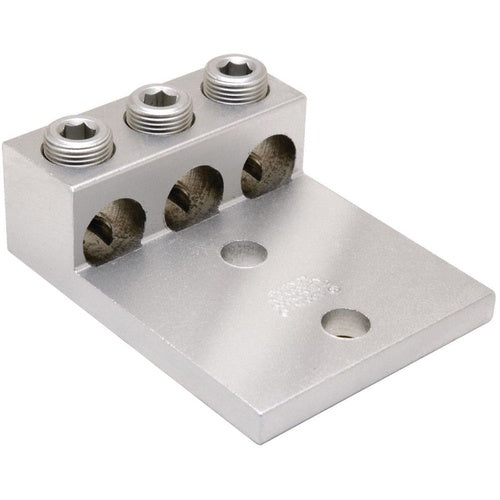

Burndy K3A29U-2N 250 Aluminum/Copper 2-Hole Terminal

Overview

Burndy K3A29U-2N 250 Aluminum/Copper 2-Hole Terminal

Product Specifications

• UPC: 78181060110
• Pad Size: 3.16 Inch L x 3.01 Inch W x 0.31 Inch Thk
• Stud Size: 1/2 Inch
• Overall Length: 4 Inch
• Approval: UL 468A/486B, CSA
• Additional Information: RoHS Compliant; Installation Torque 275 Lb-Inch; Stud Hole Spacing Size 1.75 Inch
• Catalog Number: K3A29U2N
• Model: Type K3A-U
• Number Of Conductors: 3
• Minimum Conductor Size: 6 AWG Stranded Aluminum/Copper
• Maximum Conductor Size: 250 KCMIL Aluminum, 250 KCMIL Stranded Copper
• Conductor Material: Aluminum/Copper
• Material: Electro Tin Plated Aluminum Alloy
• Number Of Pad Holes: 2 NEMA
• Catalog Description: ALUMINUM UNIVERSAL TERMINAL, 3 CONDUCTOR, 2 HOLE, 6 AWG (STR)-250 KCMIL, 1/2" STUD, 1.75" STUD HOLE SPACING, 3 SCREWS, AL/CU RATED, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Aluminum Alloy Material; 4 Inch Overall Length; 6 AWG Stranded Aluminum/Copper min. Conductor Size; 250 kcmil Aluminum, 250 kcmil Stranded Copper Max. Conductor Size; Aluminum/Copper Conductor Material; UL 468A/486B, CSA Approval; 3 Conductor(S); 1/2 Inch Stud Size; 3.16 Inch L X 3.01 Inch W X 0.31 Inch Thk Pad Size; 2 NEMA Pad Hole(S); RoHS Compliant; Installation Torque 275 lb-Inch; Stud Hole Spacing Size 1.75 Inch; TYPE K3A-U Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810601105
• SKU Name: bur k3a29u2n
