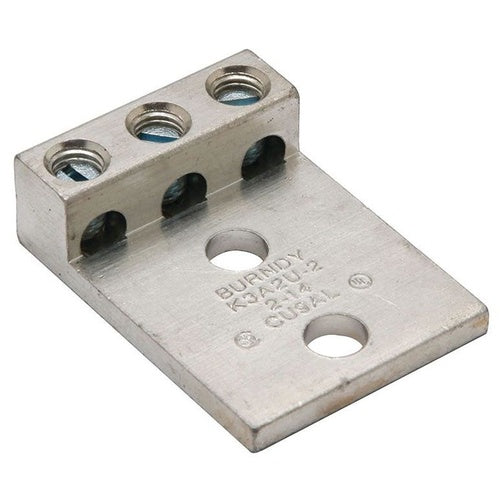

Burndy K3A2U-2 14-2 Aluminum/Copper 3-Hole Terminal

Overview

Burndy K3A2U-2 14-2 Aluminum/Copper 3-Hole Terminal

Product Specifications

• UPC: 78181037036
• Number Of Pad Holes: 2
• Pad Size: 1.63 Inch L x 1.64 Inch W x 0.19 Inch Thk
• Stud Size: 5/16 Inch
• Overall Length: 2.19 Inch
• Approval: UL 468A/486B, CSA
• Additional Information: RoHS Compliant; Installation Torque 50 Lb-Inch; Stud Hole Spacing Size 0.88 Inch
• Catalog Number: K3A2U2
• Model: Type K3A-U
• Number Of Conductors: 3
• Minimum Conductor Size: 14 AWG Stranded
• Maximum Conductor Size: 2 AWG Stranded
• Conductor Material: Aluminum/Copper
• Screw Type: Slot
• Material: Electro Tin Plated Aluminum Alloy
• Catalog Description: ALUMINUM UNIVERSAL TERMINAL, 3 CONDUCTOR, 2 HOLE, 14-2 AWG (STR), 5/16" STUD, .88" STUD HOLE SPACING, 3 SCREWS, AL/CU RATED, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Aluminum Alloy Material; 2.19 Inch Overall Length; 14 AWG Stranded min. Conductor Size; 2 AWG Stranded Max. Conductor Size; Aluminum/Copper Conductor Material; UL 468A/486B, CSA Approval; 3 Conductor(S); 5/16 Inch Stud Size; 1.63 Inch L X 1.64 Inch W X 0.19 Inch Thk Pad Size; 2 Pad Hole(S); Slot Screw Type; RoHS Compliant; Installation Torque 50 lb-Inch; Stud Hole Spacing Size 0.88 Inch; TYPE K3A-U Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810370360
• SKU Name: bur k3a2u2

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
