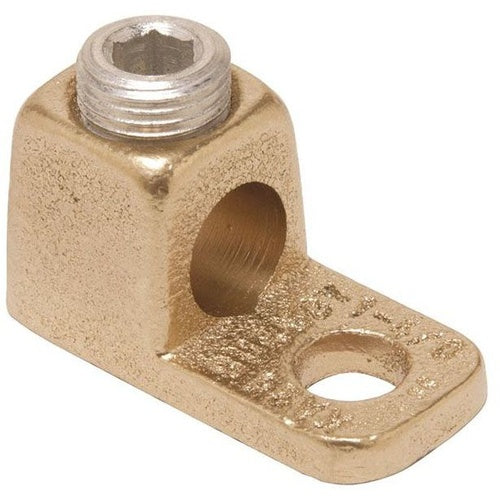

Burndy KA25-2TC38 1/0 Copper 1-Hole Lug

Overview

Burndy KA25-2TC38 1/0 Copper 1-Hole Lug

Product Specifications

• Catalog Description: COMPACT, HIGH COPPER ALLOY SET SCREW MECHANICAL TERMINAL. 2-HOLE, 3/8" STUD, 1" SPACING, #4 STR-1/0 AWG
• Category: Large Terminals & Connectors
• Full Technical Description: Copper Alloy Material; 2.69 Inch Overall Length; 4 AWG Stranded min. Conductor Size; 1/0 AWG Stranded Max. Conductor Size; Copper Conductor Material; UL 468-A, UL 468-B, CSA Approval; 3/8 Inch Stud Size; 0.75 Inch W X 0.13 Inch Thk Pad Size; Equipment Pad Type; 1/2 Inch Allen Screw Type; KA-LUG[T], BURNDY[R] Brand; RoHS Compatible; Compact, Economical; Installation Torque 200 in-lb; KA Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810034057
• SKU Name: bur ka252tc38

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
