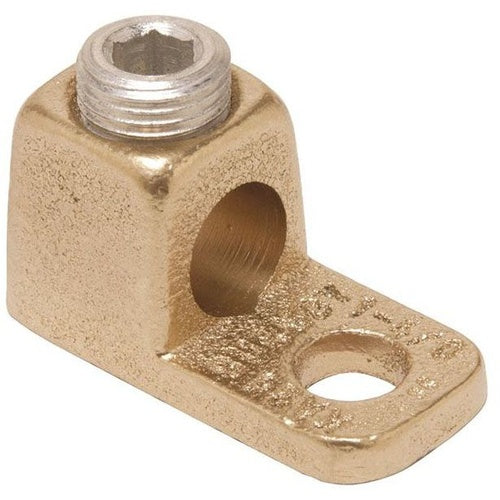

Burndy KA28 4/0 Copper 1-Hole Terminal Lug

Overview

Burndy KA28 4/0 Copper 1-Hole Terminal Lug

Product Specifications

• UPC: 78181036485
• Pad Type: Equipment
• Screw Type: 5/8 Inch Allen Head
• Material: High Copper Alloy
• Number Of Pad Holes: 1
• Pad Size: 15/16 Inch Width x 3/16 Inch Thickness
• Stud Size: 3/8 Inch
• Overall Length: 1-15/16 Inch
• Approval: UL 468A/B
• Additional Information: RoHS Compliant; Overall Height 1-1/4 Inch; Installation Torque 275 Inch-Pound; Number of Screw 1
• Catalog Number: KA28
• Brand Name: KA-LUG[TM]
• Model: KA
• Type: Socket Set Screw
• Number Of Conductors: 1
• Minimum Conductor Size: 1 AWG Stranded
• Maximum Conductor Size: 4/0 AWG Stranded
• Conductor Material: Copper
• Catalog Description: COPPER TERMINAL, 1 HOLE, 1-4/0 AWG (STR), 3/8" STUD, 1 SCREW.
• Category: Large Terminals & Connectors
• Full Technical Description: Socket Set Screw Type; High Copper Alloy Material; 1-15/16 Inch Overall Length; 1 AWG Stranded min. Conductor Size; 4/0 AWG Stranded Max. Conductor Size; Copper Conductor Material; UL 468A/B Approval; 1 Conductor(S); 3/8 Inch Stud Size; 15/16 Inch Width X 3/16 Inch Thickness Pad Size; 1 Pad Hole(S); Equipment Pad Type; 5/8 Inch Allen Head Screw Type; kA-Lug Brand; RoHS Compliant; Overall Height 1-1/4 Inch; Installation Torque 275 Inch-Pound; Number of Screw 1; KA Model
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810364857
• SKU Name: bur ka28
