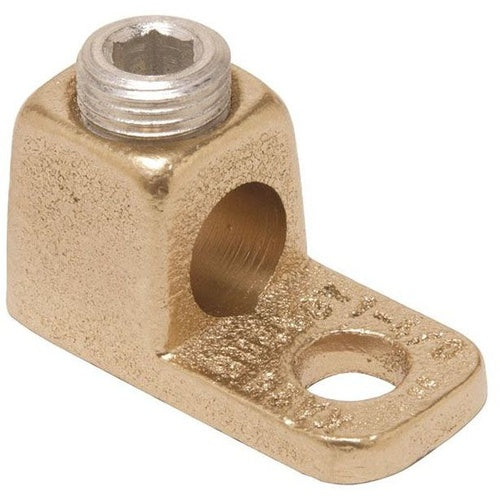

Burndy KA34 500 Cst Bronze Mechanical Lug

Overview

Burndy KA34 500 Cst Bronze Mechanical Lug

Product Specifications

• UPC: 78181036585
• Pad Type: Equipment
• Screw Type: 13/16 Inch Allen Head
• Material: High Copper Alloy
• Number Of Pad Holes: 1
• Pad Size: 1-3/8 Inch Width x 9/32 Inch Thickness
• Stud Size: 1/2 Inch
• Overall Length: 2-9/16 Inch
• Approval: UL 468A/B
• Additional Information: RoHS Compliant; Overall Height 2-3/32 Inch; Installation Torque 375 Inch-Pound; Number of Screw 1
• Catalog Number: KA34
• Brand Name: KA-LUG[TM]
• Model: KA
• Type: Socket Set Screw
• Number Of Conductors: 1
• Minimum Conductor Size: 4/0 AWG Stranded
• Maximum Conductor Size: 500 KCMIL Stranded
• Conductor Material: Copper
• Catalog Description: COPPER TERMINAL, 1 HOLE, 4/0 AWG (STR)-500 KCMIL, 1/2" STUD, 1 SCREW.
• Category: Large Terminals & Connectors
• Full Technical Description: Socket Set Screw Type; High Copper Alloy Material; 2-9/16 Inch Overall Length; 4/0 AWG Stranded min. Conductor Size; 500 kcmil Stranded Max. Conductor Size; Copper Conductor Material; UL 468A/B Approval; 1 Conductor(S); 1/2 Inch Stud Size; 1-3/8 Inch Width X 9/32 Inch Thickness Pad Size; 1 Pad Hole(S); Equipment Pad Type; 13/16 Inch Allen Head Screw Type; kA-Lug Brand; RoHS Compliant; Overall Height 2-3/32 Inch; Installation Torque 375 Inch-Pound; Number of Screw 1; KA Model
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810365854
• SKU Name: bur ka34
