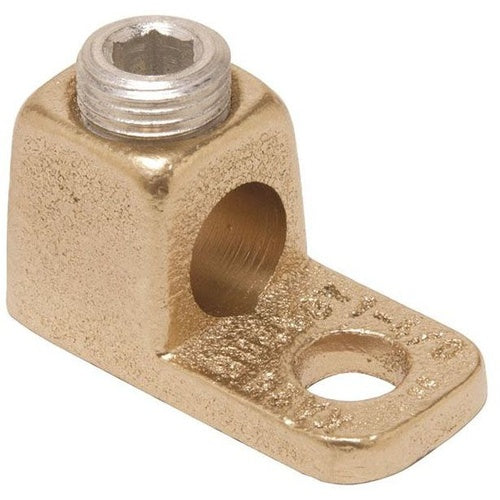

Burndy KA4C 4Str Copper 1-Hole Terminal Lug

Overview

Burndy KA4C 4Str Copper 1-Hole Terminal Lug

Product Specifications

• UPC: 78181036140
• Screw Type: 5/16 Inch Slot Head Bolt
• Material: Copper Alloy
• Number Of Pad Holes: 1
• Pad Size: 0.54 Inch Width x 7/64 Inch Thickness
• Stud Size: 1/4 Inch
• Overall Length: 1.11 Inch
• Approval: UL 468A/B, CSA
• Additional Information: RoHS Compliant; Installation Torque 45 Inch-Pound; Temperature Rating 90 Deg C
• Catalog Number: KA4C
• Brand Name: Burndy
• Model: KA
• Number Of Conductors: 1
• Minimum Conductor Size: 14 AWG Solid/Stranded
• Maximum Conductor Size: 4 AWG Solid/Stranded
• Conductor Material: Copper
• Pad Type: Equipment
• Catalog Description: HIGH COPPER ALLOY TERMINAL, COMPACT, 1-HOLE, 1/4" STUD, #14 AWG SOL-4 AWG STR.
• Category: Large Terminals & Connectors
• Full Technical Description: Copper Alloy Material; 1.11 Inch Overall Length; 14 AWG Solid/Stranded min. Conductor Size; 4 AWG Solid/Stranded Max. Conductor Size; Copper Conductor Material; UL 468A/B, CSA Approval; 1 Conductor(S); 1/4 Inch Stud Size; 0.54 Inch Width X 7/64 Inch Thickness Pad Size; 1 Pad Hole(S); Equipment Pad Type; 5/16 Inch Slot Head Bolt Screw Type; kA-Lug Brand; RoHS Compliant; Installation Torque 45 Inch-Pound; Temperature Rating 90 Deg C; KA Model
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810361405
• SKU Name: bur ka4c
