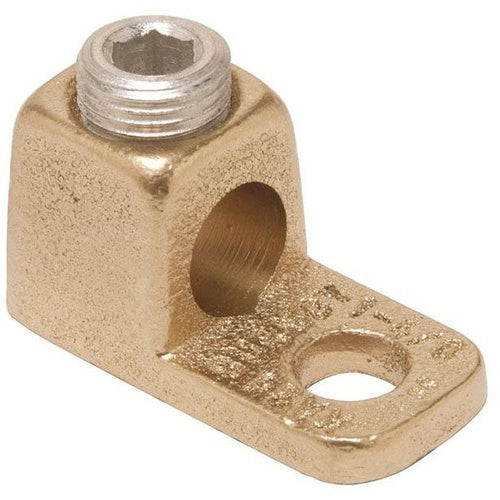

Burndy KA8C 8Str Cst Bronze Mechanical Lug

Overview

Burndy KA8C 8Str Cst Bronze Mechanical Lug

Product Specifications

• UPC: 78181036205
• Pad Type: Equipment
• Screw Type: #12 Slotted Head
• Material: High Copper Alloy
• Number Of Pad Holes: 1
• Pad Size: 3/8 Inch Width x 3/32 Inch Thickness
• Stud Size: #10
• Overall Length: 13/16 Inch
• Approval: UL 468A/B, CSA
• Additional Information: RoHS Compliant; Overall Height 5/8 Inch; Installation Torque 25 Inch-Pound; Number of Screw 1
• Catalog Number: KA8C
• Brand Name: KA-LUG[TM]
• Model: KA
• Type: Set Screw
• Number Of Conductors: 1
• Minimum Conductor Size: 14 AWG Solid/Stranded
• Maximum Conductor Size: 8 AWG Solid/Stranded
• Conductor Material: Copper
• Catalog Description: HIGH COPPER ALLOY TERMINAL, COMPACT, 1-HOLE, #10 STUD, #14 AWG SOL-8 AWG STR,
• Category: Large Terminals & Connectors
• Full Technical Description: Set Screw Type; High Copper Alloy Material; 13/16 Inch Overall Length; 14 AWG Solid/Stranded min. Conductor Size; 8 AWG Solid/Stranded Max. Conductor Size; Copper Conductor Material; UL 468A/B, CSA Approval; 1 Conductor(S); #10 Stud Size; 3/8 Inch Width X 3/32 Inch Thickness Pad Size; 1 Pad Hole(S); Equipment Pad Type; #12 Slotted Head Screw Type; kA-Lug Brand; RoHS Compliant; Overall Height 5/8 Inch; Installation Torque 25 Inch-Pound; Number of Screw 1; KA Model
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810362051
• SKU Name: bur ka8c

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
