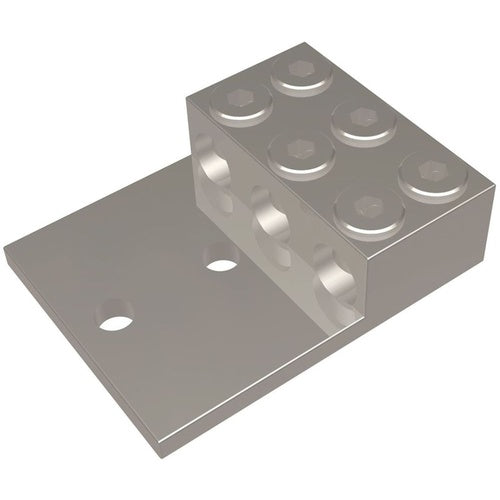

Burndy KK3A40U2N 3 Conductor Univ Terminal

Overview

Burndy KK3A40U2N 3 Conductor Univ Terminal

Product Specifications

• UPC: 78181060047
• Pad Size: 3.34 Inch L x 4.28 Inch W x 0.56 Inch Thk
• Stud Size: 1/2 Inch
• Overall Length: 6.19 Inch
• Approval: UL 468-A, UL 468-B, CSA
• Additional Information: RoHS Compatible; Stud Hole Spacing Size 1.75 Inch; Installation Torque 375 Lb-Inch
• Catalog Number: KK3A40U2N
• Model: KK3A-U
• Number Of Conductors: 3
• Minimum Conductor Size: 300 KCMIL Stranded
• Maximum Conductor Size: 800 KCMIL Stranded
• Conductor Material: Aluminum/Copper
• Material: Electro-Tin Plated Aluminum Alloy
• Number Of Pad Holes: 2 NEMA
• Catalog Description: ALUMINUM UNIVERSAL TERMINAL, 3 CONDUCTOR, 2 HOLE, 300-800 KCMIL, 1/2" STUD, 1.75" STUD HOLE SPACING, 6 SCREWS, AL/CU RATED, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Aluminum Alloy Material; 6.19 Inch Overall Length; 300 kcmil Stranded min. Conductor Size; 800 kcmil Stranded Max. Conductor Size; Aluminum/Copper Conductor Material; UL 468-A, UL 468-B, CSA Approval; 3 Conductor(S); 1/2 Inch Stud Size; 3.34 Inch L X 4.28 Inch W X 0.56 Inch Thk Pad Size; 2 NEMA Pad Hole(S); RoHS Compatible; Stud Hole Spacing Size 1.75 Inch; Installation Torque 375 lb-Inch; KK3A-U Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810600474
• SKU Name: bur kk3a40u2n

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
