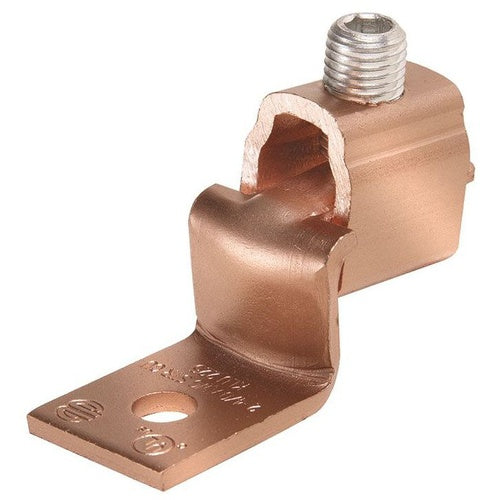

Burndy KLU125 1/0 Copper 1-Hole Terminal Lug

Overview

Burndy KLU125 1/0 Copper 1-Hole Terminal Lug

Product Specifications

• UPC: 78181035139
• Pad Type: Offset
• Screw Type: 3/8 UNF Slot
• Material: Copper Alloy
• Number Of Pad Holes: 1
• Pad Size: 0.63 Inch W x 0.11 Inch Thk
• Stud Size: 1/4 Inch
• Overall Length: 1.99 Inch
• Approval: UL 467, UL (Canada and US)
• Additional Information: RoHS Compliant; Installation Torque 50 Lb-Inch; Strip Length 15/16 Inch; Bolt Size 3/8 Inch
• Catalog Number: KLU125
• Brand Name: SCRULUG[TM]
• Model: Type KLU
• Type: Set Screw
• Number Of Conductors: 1
• Minimum Conductor Size: 2 AWG Stranded
• Maximum Conductor Size: 1/0 AWG Stranded
• Conductor Material: Copper
• Catalog Description: OFFSET TONGUE COPPER TERMINAL, 1-HOLE, 1/4" STUD, #2-1/0 AWG CU, UNPLATED
• Category: Large Terminals & Connectors
• Full Technical Description: Set Screw Type; Copper Alloy Material; 1.99 Inch Overall Length; 2 AWG Stranded min. Conductor Size; 1/0 AWG Stranded Max. Conductor Size; Copper Conductor Material; UL 467, UL (Canada and Us) Approval; 1 Conductor(S); 1/4 Inch Stud Size; 0.63 Inch W X 0.11 Inch Thk Pad Size; 1 Pad Hole(S); Offset Pad Type; 3/8 UNF Slot Screw Type; Scrulug Brand; RoHS Compliant; Installation Torque 50 lb-Inch; Strip Length 15/16 Inch; Bolt Size 3/8 Inch; TYPE KLU Model
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810351390
• SKU Name: bur klu125

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
