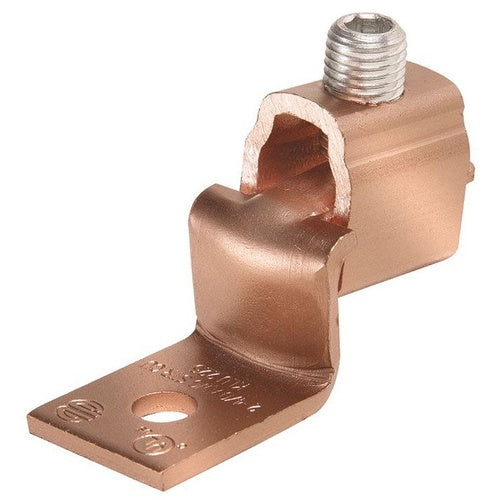

Burndy KLU175 3/0 Copper 1-Hole Terminal Lug

Overview

Burndy KLU175 3/0 Copper 1-Hole Terminal Lug

Product Specifications

• UPC: 78181035140
• Pad Type: Offset
• Screw Type: 3/8 UNF Hex Socket
• Material: Copper Alloy
• Number Of Pad Holes: 1
• Pad Size: 0.75 Inch W x 0.16 Inch Thk
• Stud Size: 3/8 Inch
• Overall Length: 2.2 Inch
• Approval: UL (Canada and US), UL 467
• Additional Information: RoHS Compatible; Strip Length 1 Inch; Bolt Size 3/8 Inch; Installation Torque 124 Lb-Inch
• Catalog Number: KLU175
• Brand Name: SCRULUG[TM]
• Model: KLU
• Type: Set Screw
• Number Of Conductors: 1
• Minimum Conductor Size: 4 AWG Stranded
• Maximum Conductor Size: 3/0 AWG Stranded
• Conductor Material: Copper
• Catalog Description: COPPER TERMINAL, OFFSET TONGUE, 1 HOLE, 4-3/0 AWG (STR), 3/8" STUD, 1 SCREW.
• Category: Large Terminals & Connectors
• Full Technical Description: Set Screw Type; Copper Alloy Material; 2.2 Inch Overall Length; 4 AWG Stranded min. Conductor Size; 3/0 AWG Stranded Max. Conductor Size; Copper Conductor Material; UL (Canada and Us), UL 467 Approval; 1 Conductor(S); 3/8 Inch Stud Size; 0.75 Inch W X 0.16 Inch Thk Pad Size; 1 Pad Hole(S); Offset Pad Type; 3/8 UNF Hex Socket Screw Type; SCRULUG[TM] Brand; RoHS Compatible; Strip Length 1 Inch; Bolt Size 3/8 Inch; Installation Torque 124 lb-Inch; KLU Model
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810351406
• SKU Name: bur klu175
