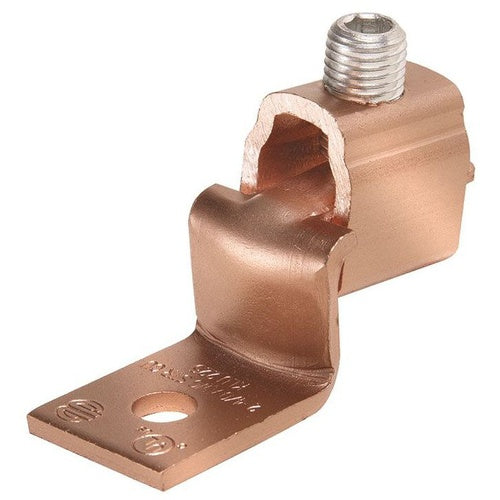

Burndy KLU225 4/0 Copper 1-Hole Terminal Lug

Overview

Burndy KLU225 4/0 Copper 1-Hole Terminal Lug

Product Specifications

• Catalog Description: COPPER TERMINAL, OFFSET TONGUE, 1 HOLE, 2-4/0 AWG (STR), 5/16" STUD, 1 SCREW.
• Category: Large Terminals & Connectors
• Full Technical Description: Set Screw Type; Copper Alloy Material; 2.56 Inch Overall Length; 2 AWG Stranded min. Conductor Size; 4/0 AWG Stranded Max. Conductor Size; Copper Conductor Material; UL (Canada and Us), UL 467 Approval; 1 Conductor(S); 5/16 Inch Stud Size; 0.99 Inch W X 0.12 Inch Thk Pad Size; 1 Pad Hole(S); Offset Pad Type; 7/16 UNF Hex Socket Screw Type; SCRULUG[TM] Brand; RoHS Compatible; Strip Length 1-5/16 Inch; Bolt Size 7/16 Inch; Installation Torque 204 lb-Inch; KLU Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810351413
• SKU Name: bur klu225

Resources

• Technical Drawing
• Manufacturer Spec Sheet
