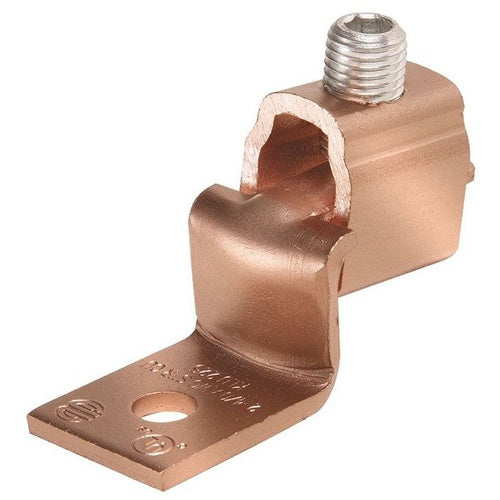

Burndy KLU70 2Str Copper 1-Hole Terminal Lug

Overview

Burndy KLU70 2Str Copper 1-Hole Terminal Lug

Product Specifications

• UPC: 78181035138
• Pad Type: Offset
• Screw Type: 5/16 Inch UNF Slot
• Material: Copper Alloy
• Number Of Pad Holes: 1
• Pad Size: 0.47 Inch W x 0.08 Inch Thk
• Stud Size: 1/4 Inch
• Overall Length: 1.56 Inch
• Approval: UL 467, UL (Canada and US)
• Additional Information: RoHS Compliant; Installation Torque 50 Lb-Inch; Strip Length 3/4 Inch; Bolt Size 5/16 Inch
• Catalog Number: KLU70
• Brand Name: SCRULUG[TM]
• Model: Type KLU
• Type: Set Screw
• Number Of Conductors: 1
• Minimum Conductor Size: 8 AWG Solid/Stranded
• Maximum Conductor Size: 2 AWG Solid/Stranded
• Conductor Material: Copper
• Catalog Description: OFFSET TONGUE COPPER TERMINAL, 1-HOLE, 1/4" STUD, #8 AWG SOL-2 AWG STR, UNPLATED
• Category: Large Terminals & Connectors
• Full Technical Description: Set Screw Type; Copper Alloy Material; 1.56 Inch Overall Length; 8 AWG Solid/Stranded min. Conductor Size; 2 AWG Solid/Stranded Max. Conductor Size; Copper Conductor Material; UL 467, UL (Canada and Us) Approval; 1 Conductor(S); 1/4 Inch Stud Size; 0.47 Inch W X 0.08 Inch Thk Pad Size; 1 Pad Hole(S); Offset Pad Type; 5/16 Inch UNF Slot Screw Type; Scrulug Brand; RoHS Compliant; Installation Torque 50 lb-Inch; Strip Length 3/4 Inch; Bolt Size 5/16 Inch; TYPE KLU Model
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810351383
• SKU Name: bur klu70
