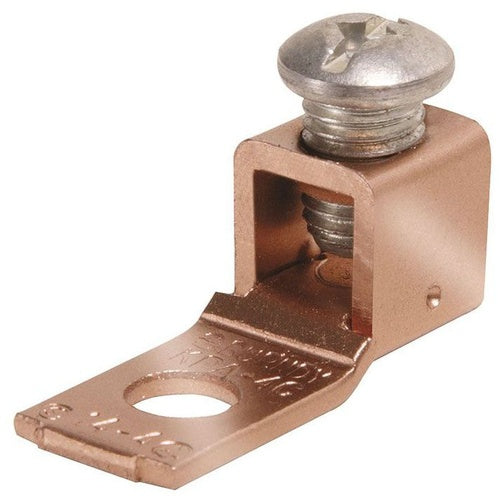

Burndy KPA4CUP 4Str Copper Mechanical Lug

Overview

Burndy KPA4CUP 4Str Copper Mechanical Lug

Product Specifications

• Catalog Description: SCRULUG MECHANICAL TERMINAL FOR COPPER CABLE; 1-HOLE; ACCOMMODATES: #14 SOL - #4 STR; 1.28" LENGTH; .50" WIDTH.
• Category: Large Terminals & Connectors
• Full Technical Description: 1-Piece Type; Copper Alloy Material; 1.28 Inch Overall Length; 14 AWG Solid min. Conductor Size; 4 AWG Stranded Max. Conductor Size; Copper Conductor Material; UL 468-A, UL 468-B, CSA Approval; 1 Conductor(S); 1/4 Inch Stud Size; 0.71 Inch L X 0.5 Inch W X 0.07 Inch Thk Pad Size; 1 Pad Hole(S); Equipment Pad Type; 5/16 Inch Slot Robertson Screw Type; SCRULUG[TM] Brand; RoHS Compatible; Strip Length 9/16 Inch; Installation Torque 45 lb-Inch; KPA-UP Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810354360
• SKU Name: bur kpa4cup

Resources

• Technical Line Drawing
• Manufacturer Spec Sheet
