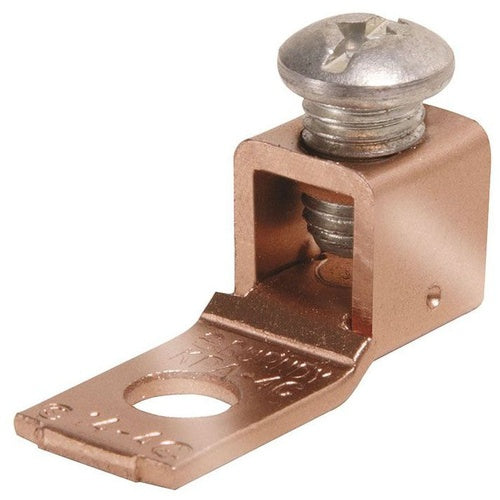

Burndy KPA8CUP 6Str Copper Mechanical Lug

Overview

Burndy KPA8CUP 6Str Copper Mechanical Lug

Product Specifications

• UPC: 78181035435
• Pad Type: Equipment
• Screw Type: # 12-24 TPI Slot
• Material: Copper Alloy
• Number Of Pad Holes: 1
• Pad Size: 0.56 Inch L x 0.38 Inch W x 0.07 Inch Thk
• Stud Size: #10
• Overall Length: 1.04 Inch
• Approval: UL 468-A, UL 468-B, CSA
• Additional Information: RoHS Compatible; Strip Length 15/32 Inch; Installation Torque 35 Lb-Inch
• Catalog Number: KPA8CUP
• Brand Name: SCRULUG[TM]
• Model: KPA-UP
• Type: 1-Piece
• Number Of Conductors: 1
• Minimum Conductor Size: 14 AWG Solid
• Maximum Conductor Size: 6 AWG Stranded
• Conductor Material: Copper
• Catalog Description: COPPER TERMINAL WITH PRESSURE BAR, 1-HOLE, #10 STUD, #14 AWG SOL-6 AWG STR, UNPLATED
• Category: Large Terminals & Connectors
• Full Technical Description: 1-Piece Type; Copper Alloy Material; 1.04 Inch Overall Length; 14 AWG Solid min. Conductor Size; 6 AWG Stranded Max. Conductor Size; Copper Conductor Material; UL 468-A, UL 468-B, CSA Approval; 1 Conductor(S); #10 Stud Size; 0.56 Inch L X 0.38 Inch W X 0.07 Inch Thk Pad Size; 1 Pad Hole(S); Equipment Pad Type; # 12-24 TPI Slot Screw Type; SCRULUG[TM] Brand; RoHS Compatible; Strip Length 15/32 Inch; Installation Torque 35 lb-Inch; KPA-UP Model
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810354353
• SKU Name: bur kpa8cup
