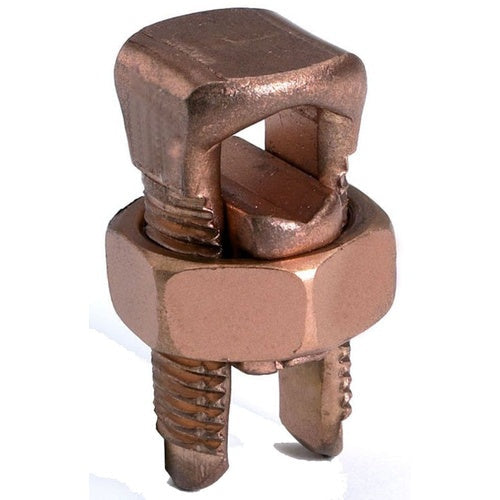

Burndy KS-20 4Sol Copper Split Bolt(P)

Overview

Burndy KS-20 4Sol Copper Split Bolt(P)

Product Specifications

• UPC: 78181001200
• Maximum Tap Conductor Size: 4 AWG Solid (Copper), 4 AWG Solid, (3) 10 AWG Stranded, 6 AWG Type A, 8 AWG Type D (Copperweld)
• Material: High Copper Alloy
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Overall Dimension 0.65 Inch Length x 0.51 Inch Width; Installation Torque 165 Inch-Pound; Cross Flat 0.69 Inch
• Catalog Number: KS20
• Brand Name: Burndy
• Model: KS
• Installation: Split Bolt
• Conductor Material: Copper/Copperweld
• Minimum Run Conductor Size: 8 AWG Stranded (Copper)
• Maximum Run Conductor Size: 4 AWG Solid (Copper), 4 AWG Solid, (3) 10 AWG Stranded, 6 AWG Type A, 8 AWG Type D (Copperweld)
• Minimum Tap Conductor Size: 14 AWG Stranded (Copper)
• Catalog Description: COPPER SPLIT BOLT, CU: 8 AWG (STR)-6 AWG (SOL) (RUN & TAP),LENGTH:1.20.
• Category: Large Terminals & Connectors
• Full Technical Description: High Copper Alloy Material; 8 AWG Stranded (Copper) min. Run Conductor Size; 4 AWG Solid (Copper), 4 AWG Solid, (3) 10 AWG Stranded, 6 AWG Type A, 8 AWG Type D (Copperweld) Max. Run Conductor Size; 14 AWG Stranded (Copper) min. Tap Conductor Size; 4 AWG Solid (Copper), 4 AWG Solid, (3) 10 AWG Stranded, 6 AWG Type A, 8 AWG Type D (Copperweld) Max. Tap Conductor Size; Split Bolt Installation; Copper/Copperweld Conductor Material; UL, CSA Approval; Burndy Brand; RoHS Compliant; Overall Dimension 0.65 Inch Length X 0.51 Inch Width; Installation Torque 165 Inch-Pound; Cross Flat 0.69 Inch; KS Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810012000
• SKU Name: bur ks20

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
