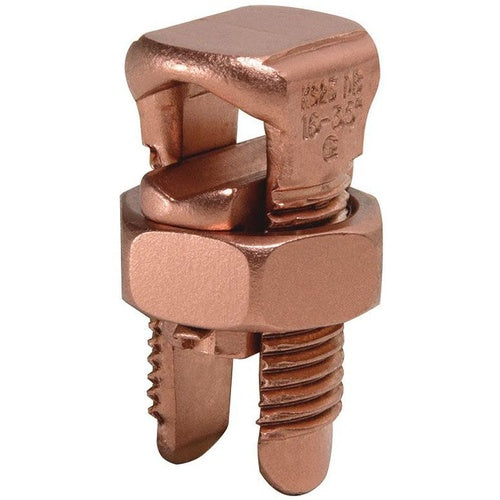

Burndy KS-25 1/0Str Copper Split Bolt

Overview

Burndy KS-25 1/0Str Copper Split Bolt

Product Specifications

• UPC: 78181001310
• Maximum Tap Conductor Size: 1/0 AWG Stranded (Copper), 2/0 AWG Solid, (3) 5 AWG Stranded, 2 AWG Type A, 4 AWG Type D (Copperweld)
• Material: High Copper Alloy
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Overall Dimension 0.83 Inch Length x 0.73 Inch Width; Installation Torque 385 Inch-Pound; Cross Flat 0.94 Inch
• Catalog Number: KS25
• Brand Name: Burndy
• Model: KS
• Installation: Split Bolt
• Conductor Material: Copper/Copperweld
• Minimum Run Conductor Size: 4 AWG Stranded (Copper)
• Maximum Run Conductor Size: 1/0 AWG Stranded (Copper), 2/0 AWG Solid, (3) 5 AWG Stranded, 2 AWG Type A, 4 AWG Type D (Copperweld)
• Minimum Tap Conductor Size: 14 AWG Stranded (Copper)
• Catalog Description: COPPER SPLIT BOLT, CU: 4 AWG-1/0 AWG (STR) (RUN & TAP).
• Category: Large Terminals & Connectors
• Full Technical Description: High Copper Alloy Material; 4 AWG Stranded (Copper) min. Run Conductor Size; 1/0 AWG Stranded (Copper), 2/0 AWG Solid, (3) 5 AWG Stranded, 2 AWG Type A, 4 AWG Type D (Copperweld) Max. Run Conductor Size; 14 AWG Stranded (Copper) min. Tap Conductor Size; 1/0 AWG Stranded (Copper), 2/0 AWG Solid, (3) 5 AWG Stranded, 2 AWG Type A, 4 AWG Type D (Copperweld) Max. Tap Conductor Size; Split Bolt Installation; Copper/Copperweld Conductor Material; UL, CSA Approval; Servit [R] Brand; RoHS Compliant; Overall Dimension 0.83 Inch Length X 0.73 Inch Width; Installation Torque 385 Inch-Pound; Cross Flat 0.94 Inch; KS Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 781810013106
• SKU Name: bur ks25
